From £399.00
Calibration options available
SKU | Range (inch) | Graduation (inch) | Price | ||
---|---|---|---|---|---|
526-176-20 | 0.037 - 0.061 | 0.001 " | £1,990.00 |
| |
526-166-20 | 0.06 - 0.157 | 0.0001" | £2,880.00 |
| |
526-156-20 | 0.145 - 0.29 | 0.0001" | £1,680.00 |
| |
526-122-20 | 0.3 - 0.4 | 0.0001" | £399.00 |
| |
526-119-20 | 0.3 - 0.4 | 0.0005" | £425.00 |
| |
526-123-20 | 0.4 - 0.7 | 0.0001" | £488.00 |
| |
526-120-20 | 0.4 - 0.7 | 0.0005" | £425.00 |
|
Prices in the above table do not include calibration.

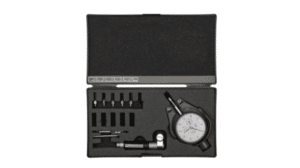

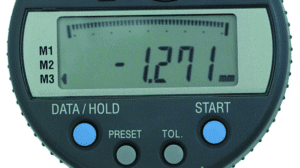

This is a two point split contact point ideally suited to smaller bore measurements. It offers you the following benefits: A precision bore gauge so you can make quick and accurate measurements of small hole diameters (0.95-18 mm). You can replace the analogue indicator fitted to this instrument with a customer-supplied Digimatic indicator if you need. The contact point is hard chrome finish
Weight | 420 g |
---|---|
Unit | |
Range (inch) | 0.037 – 0.061, 0.059 – 0.156, 0.06 – 0.157, 0.145 – 0.29, 0.146 – 0.287, 0.24 – 0.4, 0.3 – 0.4, 0.4 – 0.7 |
Graduation (inch) | |
Family | |
Calibration Type | |
Additional Calibration Type | UKAS |
Measuring span (inch) | |
Measuring depth (mm) | |
Measuring depth (inch) | |
Repeatability | 2 µm |
Number of anvils | 5, 6, 9, 7, 8 |
Micrometer Head stroke (inch) | 0 |
Delivered | In box including plastic cover for Dial Indicator |
Digital/Analog |
