£9,999.99
Please choose options to view available calibrations and pricing
| SKU | Range (inch) | Graduation (inch) | Price | ||
|---|---|---|---|---|---|
| 511-791-20 | 0.7 - 1.4 | 0.0001" |
| ||
| 511-786-20 | 0.7 - 1.4 | 0.0005" |
| ||
| 511-792-20 | 1.4 - 2.5 | 0.0001" |
| ||
| 511-787-20 | 1.4 - 2.5 | 0.0005" |
| ||
| 511-793-20 | 2 - 6 | 0.0001" |
| ||
| 511-788-20 | 2 - 6 | 0.0005" |
| ||
| 511-794-20 | 4 - 6.5 | 0.0001" |
| ||
| 511-789-20 | 4 - 6.5 | 0.0005" |
|
Prices in the above table do not include calibration.

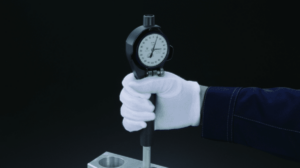

This is a compact and lightweight bore gauge due to the short length below the grip. It offers you the following benefits: A long plunger stroke gives you amazing accuracy. Contact points are carbide giving you high durability and wear resistance. A large grip reduces heat transfer from the operator by 50%.
| Weight | 400 g |
|---|---|
| Unit | |
| Range (inch) | |
| Graduation (inch) | |
| Dial Indicator | |
| Family | |
| Accuracy (µm) | |
| Calibration Type | |
| Measuring span (inch) | |
| Measuring depth (mm) | |
| Measuring depth (inch) | |
| Accuracy Specification | 0 |
| Number of anvils | 11, 13, 6, 9 |
| Stroke of contact point (mm) | 18 – 60 mm: 1.2 mm 50 – 160 mm: 1.6 mm |
| Micrometer Head stroke (inch) | 0 |
| Delivered | Including box, dial indicator, plastic cover for indicator |
| Digital/Analog |
