From £289.00
Calibration options available
| SKU | Range (mm) | Graduation (mm) | Price | ||
|---|---|---|---|---|---|
| 511-767 | 35 - 60 | 0.01 mm | £289.00 |
| |
| 511-772-20 | 35 - 60 | 0.001 mm | £356.00 |
| |
| 511-768 | 50 - 150 | 0.01 mm | £315.00 |
|
Prices in the above table do not include calibration.

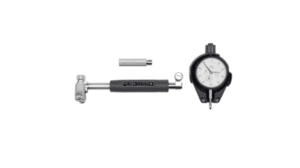

This is a compact and lightweight bore gauge due to the short length below the grip. It offers you the following benefits: A long plunger stroke gives you amazing accuracy. Contact points are carbide giving you high durability and wear resistance. A large grip reduces heat transfer from the operator by 50%.
| Weight | 420 g |
|---|---|
| Unit | |
| Range (mm) | |
| Graduation (mm) | |
| Dial Indicator | |
| Family | |
| Accuracy (ยตm) | |
| Calibration Type | |
| Measuring span (inch) | |
| Measuring depth (mm) | |
| Measuring depth (inch) | |
| Accuracy Specification | 0 |
| Number of anvils | 11, 13, 6, 9 |
| Stroke of contact point (mm) | 1.6 mm, 1.2 mm, 18 – 60 mm: 1.2 mm 50 – 160 mm: 1.6 mm |
| Micrometer Head stroke (inch) | 0 |
| Delivered | Including box, dial indicator, plastic cover for indicator |
| Digital/Analog |
