£472.00 – £1,240.00
Please choose options to view available calibrations and pricing
| SKU | Range (inch) | Type | Graduation (inch) | Price | ||
|---|---|---|---|---|---|---|
| 511-843-20 | 2.4 - 4 | With indicator | 0.0005" | £472.00 |
| |
| 511-853-20 | 2.4 - 4 | With indicator | 0.0001" | £520.00 |
| |
| 511-844-20 | 4 - 6.4 | With indicator | 0.0005" | £518.00 |
| |
| 511-854-20 | 4 - 6.4 | With indicator | 0.0001" | £546.00 |
| |
| 511-845-20 | 6 - 10 | With indicator | 0.0005" | £616.00 |
| |
| 511-855-20 | 6 - 10 | With indicator | 0.0001" | £633.00 |
| |
| 511-846-20 | 10 - 16 | With indicator | 0.0005" | £696.00 |
| |
| 511-856-20 | 10 - 16 | With indicator | 0.0001" | £751.00 |
| |
| 511-847-20 | 16 - 24 | With indicator | 0.0005" | £944.00 |
| |
| 511-857-20 | 16 - 24 | With indicator | 0.0001" | £1,090.00 |
| |
| 511-848-20 | 24 - 32 | With indicator | 0.0005" | £1,190.00 |
| |
| 511-858-20 | 24 - 32 | With indicator | 0.0001" | £1,240.00 |
|
Prices in the above table do not include calibration.

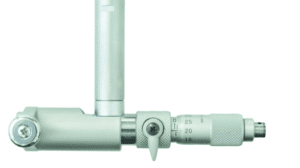

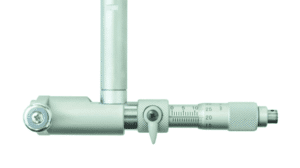

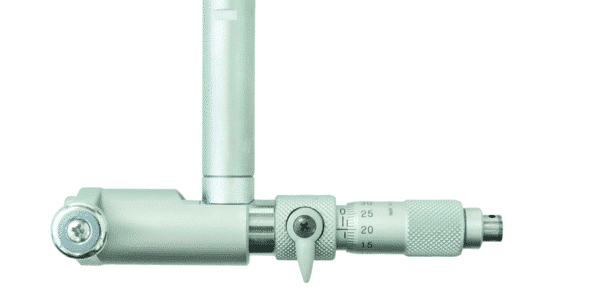

This is a micrometer head that enables measurements without interchangeable anvils. It offers you the following benefits: A long plunger stroke gives you amazing accuracy. Contact points are carbide (>18 mm range), giving you high durability and wear resistance. A large grip reduces heat transfer from the operator by 50%. Wide measuring range with sub-anvils.
| Weight | 1270 g |
|---|---|
| Unit | |
| Range (inch) | |
| Type | |
| Graduation (inch) | |
| Dial Indicator | |
| Family | |
| Calibration Type | |
| Accuracy (µm) | |
| Additional Calibration Type | UKAS |
| Measuring span (inch) | |
| Measuring depth (mm) | |
| Measuring depth (inch) | |
| Accuracy Specification | 0 |
| Micrometer Head stroke (mm) | 0 |
| Micrometer Head stroke (inch) | 0.4", 0.5", 1", 2" |
| Sub anvils | 0.4, 0.8, 0.8, 2", 0.4, 0.8, 0.8", 0.4, 0.8", 1, 2, 2", 2, 4" |

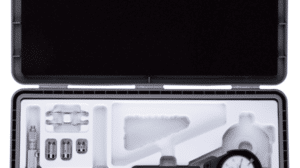

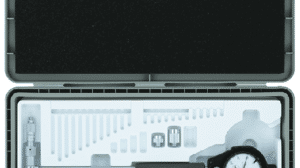

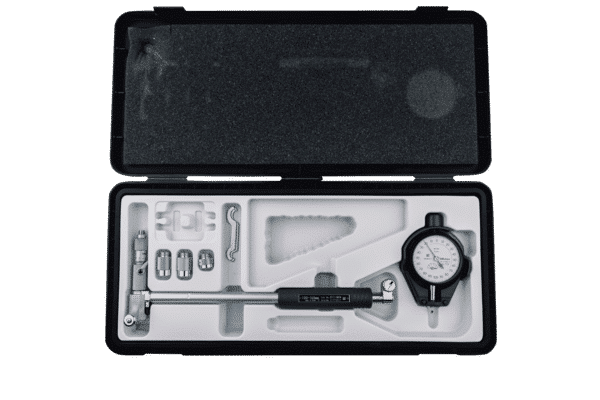

| Delivered | Including box, dial indicator, plastic cover for indicator |
| Digital/Analog |
