£300.00 – £1,080.00
Please choose options to view available calibrations and pricing
| SKU | Range (inch) | Price | ||
|---|---|---|---|---|
| 368-864 | 0.5 - 0.65 | £300.00 |
| |
| 368-865 | 0.65 - 0.8 | £317.00 |
| |
| 368-866 | 0.8 - 1 | £335.00 |
| |
| 368-868 | 1.2 - 1.6 | £392.00 |
| |
| 368-869 | 1.6 - 2 | £392.00 |
| |
| 368-867 | 1 - 1.2 | £358.00 |
| |
| 368-870 | 2 - 2.5 | £451.00 |
| |
| 368-871 | 2.5 - 3 | £467.00 |
| |
| 368-872 | 3 - 3.5 | £483.00 |
| |
| 368-873 | 3.5 - 4 | £499.00 |
| |
| 368-874 | 4 - 5 | £793.00 |
| |
| 368-875 | 5 - 6 | £847.00 |
| |
| 368-876 | 6 - 7 | £929.00 |
| |
| 368-877 | 7 - 8 | £942.00 |
| |
| 368-878 | 8 - 9 | £942.00 |
| |
| 368-879 | 9 - 10 | £942.00 |
| |
| 368-880 | 10 - 11 | £970.00 |
| |
| 368-881 | 11 - 12 | £1,080.00 |
|
Prices in the above table do not include calibration.

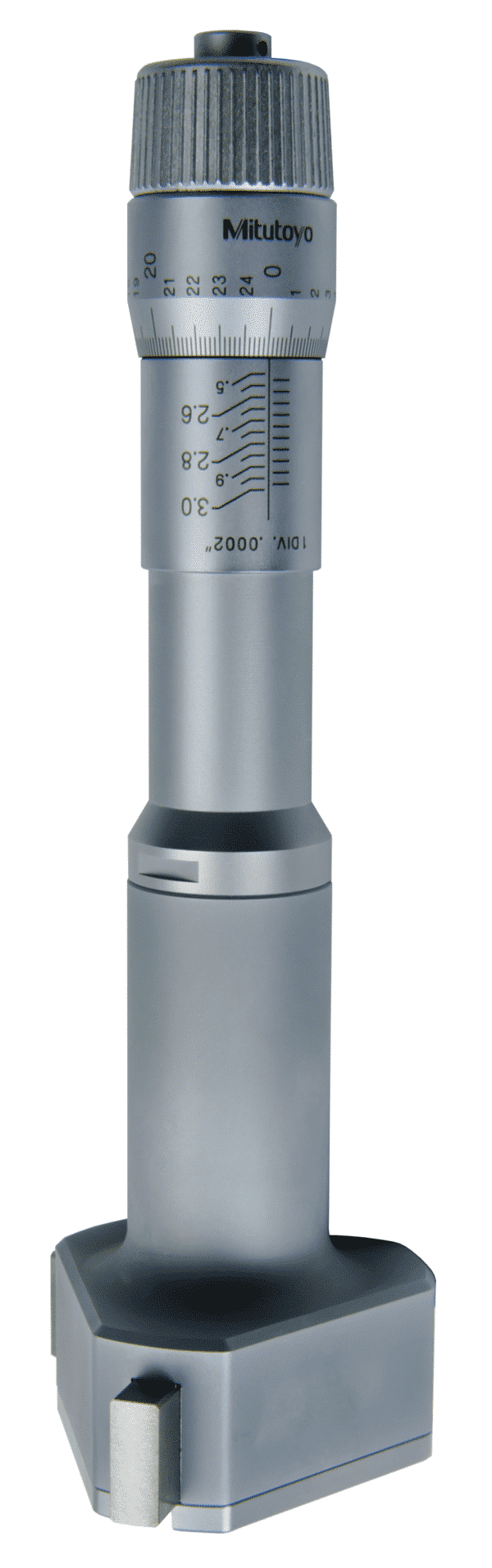

A non-digital Mitutoyo bore gauge. Hardened steel contact faces. A ratchet stop guarantees repeatable measurement.
| Weight | 150 g |
|---|---|
| Unit | |
| Range (inch) | 0.5 – 0.65, 0.65 – 0.8, 0.8 – 1, 1 – 1.2, 1.2 – 1.6, 1.6 – 2, 2 – 2.5, 2.5 – 3, 3 – 3.5, 3.5 – 4, 4 – 5, 5 – 6, 6 – 7, 7 – 8, 8 – 9, 9 – 10, 10 – 11, 11 – 12 |
| Graduation (inch) | |
| Family | |
| Calibration Type | |
| Measuring span (inch) | |
| Measuring spindle | Spindle pitch 0,635 mm |
| Measuring face | Hardened steel taper: hardened steel |
| Measuring depth (inch) | |
| Measuring method | |
| Accuracy Specification | 0,08-0,8": 0,0001" 0,8-4": 0,00015" 4-12":Â 0,00025" Â |
| Micrometer Head stroke (inch) | 0 |
| Scale | Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm |
| Delivered | Including box, key, certificate of inspection |
| Digital/Analog |
