| SKU | Range (mm) | Measuring contact movable type | Price | ||
|---|---|---|---|---|---|
| D1R10 | 0 - 10 | HM-Ball Ø 1,5 mm | £333.20 |
| |
| D1R10S | 0 - 10 | Chisel R 0,4 mm | £333.20 |
| |
| D2R20 | 0 - 20 | HM-Ball Ø 1,5 mm | £333.20 |
| |
| D2R20S | 0 - 20 | Chisel R 0,4 mm | £333.20 |
| |
| D4R50 | 0 - 50 | HM-Ball Ø 3mm | £383.40 |
| |
| D4R50S | 0 - 50 | Chisel R 0,75 mm | £383.40 |
| |
| D8R100 | 0 - 100 | HM-Ball Ø 5 mm | £723.50 |
|
Prices in the above table do not include calibration.

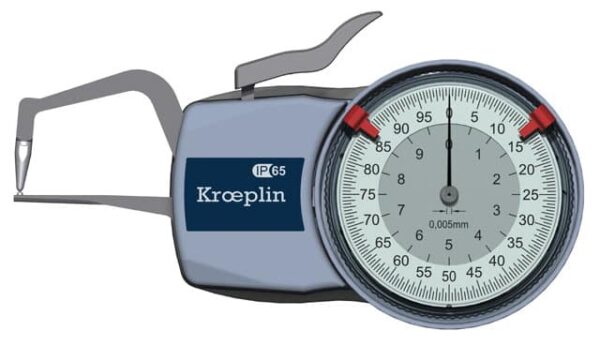

Analogue internal measuring gauge
Measurement of tube wall thickness
| Weight | 165 g |
|---|---|
| Range (mm) | |
| Unit | |
| Measuring span (mm) | |
| Range of indication Azb (mm) | 0 – 10.5, 0 – 101, 0 – 20.5, 0 – 50.5 |
| Scale interval Skw (mm) | 0.005, 0.01, 0.05, 0.1 |
| Max. Permissible Error G (mm) | 0.015, 0.03, 0.05, 0.15 |
| Repeatability limit r (mm) | 0.005, 0.01, 0.025, 0.25 |
| Measuring force F min. (N) | 0.8, 1.1, 1.2 |
| Measuring force F max. (N) | 1.6, 1.7, 8 |
| Measuring contact fixed Hf (mm) | 0.9, 15, 2.5, 4.3 |
| Measuring depth max. L (mm) | 169, 35, 382, 85, 80 |
| Reference temperature | 20 °C |
| Reference temperature range | 10 – 30 °C |
| Storage temperature | -10 – 50 °C |
| Protection | |
| Measuring contact movable type | Chisel R 0,4 mm, Chisel R 0,75 mm, HM-Ball Ø 1,5 mm, HM-Ball Ø 3mm, HM-Ball Ø 5 mm |
