Mitutoyo Check Master (Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Price
515-720-10 - 310£2,190.00

Add to Basket

515-721-10 - 450£2,280.00

Add to Basket

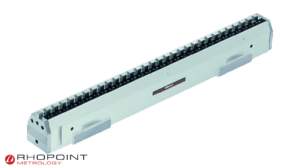

515-722-10 - 610£2,770.00

Add to Basket

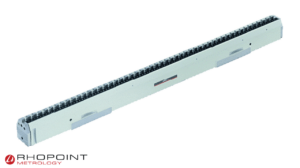

515-723-10 - 1010£5,810.00

Add to Basket

Prices in the above table do not include calibration.

Description

This Check Master allows you to test precision tool and coordinate measuring machines, and offers you the following benefits: You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines. It consists of rigidly clamped gauge blocks with a step of 10mm. It is supplied in a fitted wooden case.

Specification

Weight 22000 g
Block step

10 mm

Range (mm)

, , ,

Family

Calibration Type

Unit

Delivered

In a wooden case with certificate of inspection

Parallelism (µm)

1.2, 1.5, 2

Block pitch accuracy

Range ≤ 310 mm: ±2,5 µm 310 610 1010, Range ≤ 310 mm: ±2.5 µm 310 610 1010

Accuracy (µm)

Parallelism of blocks

Range ≤ 310 mm: 1.2 µm  310 < range ≤   610 mm: 1.5 µm 610 < range ≤ 1010 mm: 2.0 µm 1010 < range ≤ 1510 mm: 2.5 µm
