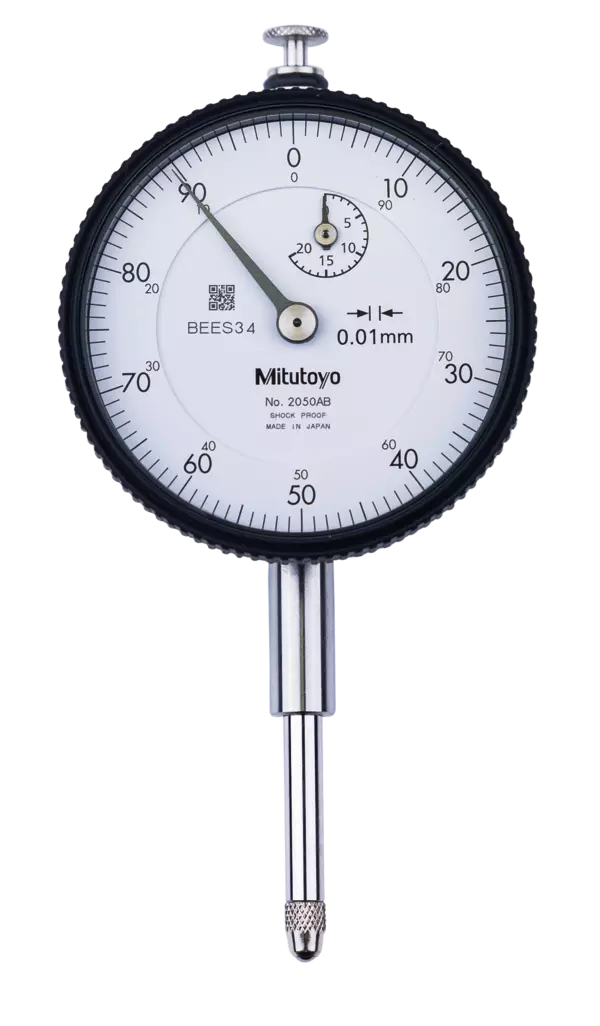

Dial Gauge, Lug Back, ISO Type

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Price
2046A10 mm£44.50

Add to Basket

2050A20 mm£86.10

Add to Basket

1044A-155 mm£92.50

Add to Basket

2109A-101 mm£95.10

Add to Basket

2052A30 mm£106.00

Add to Basket

Prices in the above table do not include calibration.

Description

Compact Type 5 mm Range Small Diameter – Metric

This is a compact, dial indicator with a bezel ∅ 40 mm. It offers you the following benefits:
– It is ideal for use in applications where space is limited.

Specification

Weight 90 g
Range (mm)

, , , ,

Graduation (mm)

,

Accessories

With certificate of inspection

Digital/Analog

Unit

Dial Reading

±0-100, 0-10-0

Type

,

Range per rev. (mm)

1 mm, 0.2 mm

Standard

Measuring force

, , , ,

Protection

,

Mass

, , , ,

MPE any 1/10 revolution

2.5 µm, 5 µm, 6 µm, 7 µm

MPE any 1/2 revolution

10 µm, 11 µm, 4 µm, 9 µm

MPE any 1 revolution

10 µm, 11 µm, 12 µm, 4.5 µm

MPE measuring range (µm)

12 µm, 13 µm, 20 µm, 25 µm, 5 µm

H MPE (Hysteresis) (mm)

2 µm, 3 µm, 4 µm, 5 µm

R MPE (Repeatability) (mm)

1 µm, 3 µm

Continuous dial

Yes

Cushioned end point

Yes

Balanced dial

Yes

Shockproof

Yes

Contact point

Stem (mm)
