£104.00 – £136.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 2044A-60 | 0 - 5 | £104.00 |
| |
| 2046A-60 | 0 - 10 | £116.00 |
| |
| 2050A-60 | 0 - 20 | £136.00 |
|
Prices in the above table do not include calibration.

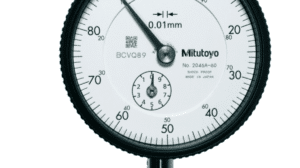

Standard Type, 10 mm Range, 0.01 mm Graduation This is a standard dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
| Weight | 146 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (mm) | |
| R MPE (Repeatability) (µm) | 3 |
| Graduation (mm) | |
| Standard | |
| MPE measuring range (µm) | 12, 13, 20 |
| Range per rev. (mm) | 1 mm |
| Scale | 0-100 |
| MPE any 1/10 revolution | 5, 6 |
| MPE any 1/2 revolution | 9, 10 |
| MPE any 1 revolution | 10, 11 |
| Stem (mm) | |
| Digital/Analog | |
| Continuous dial | Yes |
| Contact point |
