£119.00 – £146.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Dial Reading | Price | ||
|---|---|---|---|---|---|
| 2109A-70 | 0 - 1 | 0-100-0 | £119.00 |
| |
| 2110A-70 | 0 - 1 | 0-100 | £146.00 |
|
Prices in the above table do not include calibration.

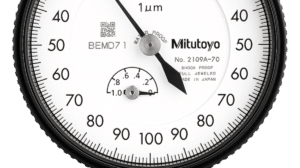

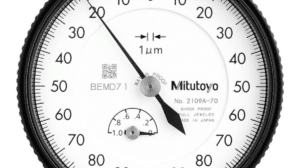

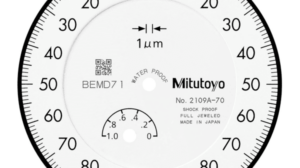

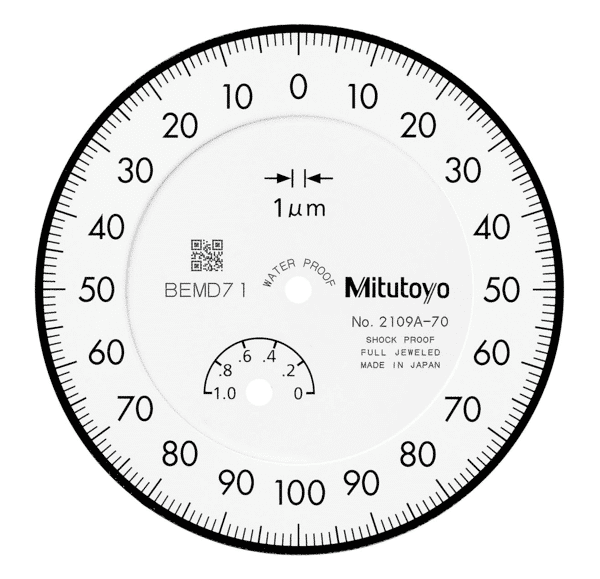

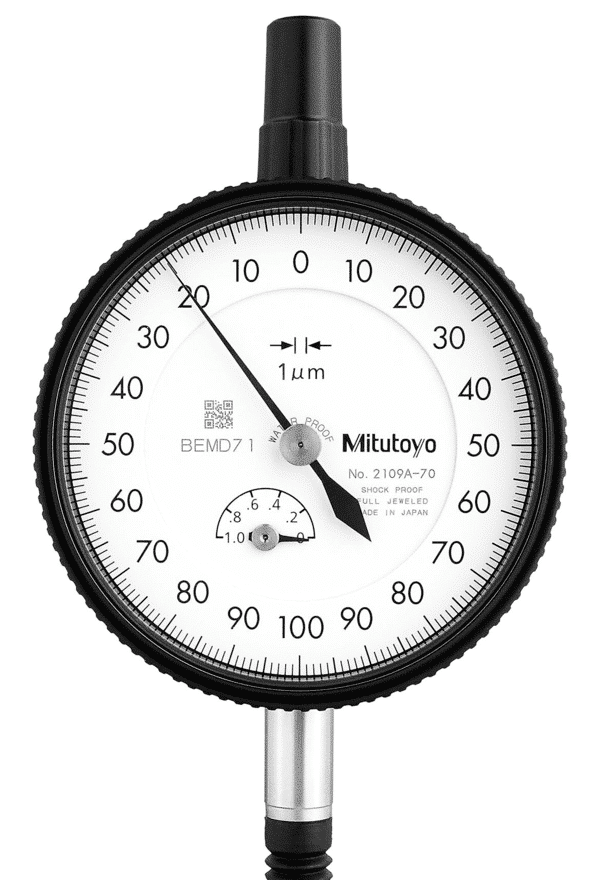

Standard Type, 1 mm Range, 0.001 mm Graduation This is a standard dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Weight | 149 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (mm) | |
| Graduation (mm) | |
| R MPE (Repeatability) (µm) | 1 |
| Standard | |
| MPE measuring range (µm) | 5 |
| Range per rev. (mm) | 0.1 mm, 0.2 mm |
| Scale | 0-100, 0-100-0 |
| MPE any 1/10 revolution | 2.5 |
| MPE any 1/2 revolution | 4 |
| MPE any 1 revolution | 4.5 |
| Stem (mm) | |
| Digital/Analog | |
| Balanced dial | Yes |
| Continuous dial | Yes |
| Double scale spacing | Yes |
| Shockproof | Yes |
| Contact point | |
| Dial Reading | 0-100, 0-100-0 |
