From £67.00
Calibration options available
| SKU | Range (mm) | Dial Reading | Price | ||
|---|---|---|---|---|---|
| 1013A-10 | 0 - 1 | 0-100-0 | £141.00 |
| |
| 1911A-10 | 0 - 2.5 | 0-50-0 | £148.00 |
| |
| 2124A-10 | 0 - 5 | 0-50 | £87.40 |
| |
| 1044A-15 | 0 - 5 | 0-100 | £89.80 |
| |
| 2118A-10 | 0 - 5 | 0-100-100 | £129.00 |
| |
| 2310A-10 | 0 - 10 | 0-100 | £67.00 |
| |
| 2320A-10 | 0 - 20 | 0-100 | £97.90 |
|
Prices in the above table do not include calibration.

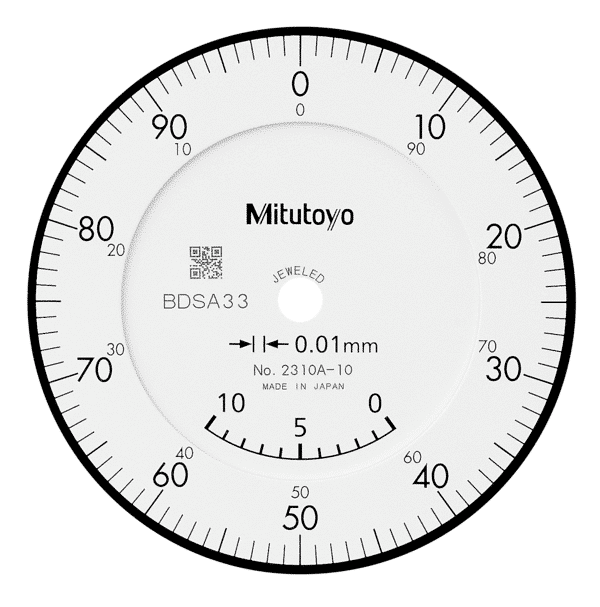

Standard Type, 10 mm Range, 0.01 mm Graduation This is a standard dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
| Weight | 146 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (mm) | |
| Graduation (mm) | |
| R MPE (Repeatability) (ยตm) | 3, 1, 1.5, 2 |
| Standard | |
| MPE measuring range (ยตm) | 10, 11, 12, 13, 15, 20, 6 |
| Range per rev. (mm) | 1 mm, 0.2 mm, 0.5 mm |
| Scale | 0-100, 0-100-0, 0-100-0-100, 0-50, 0-50-0 |
| MPE any 1/10 revolution | 5, 2.5, 4, 6, 6.5 |
| MPE any 1/2 revolution | 9, 10, 4, 6 |
| MPE any 1 revolution | 10, 11, 4.5, 6.5 |
| Coaxial revolution counter | Yes |
| Stem (mm) | |
| Digital/Analog | |
| Balanced dial | Yes |
| Continuous dial | Yes |
| Shockproof | Yes |
| Cushioned end point | Yes |
| Contact point | |
| Dial Reading | 0-100, 0-100-0, 0-100-100, 0-50, 0-50-0 |
