From £92.10
Calibration options available
| SKU | Range (mm) | Dial Reading | Dial Face Diameter | Price | ||
|---|---|---|---|---|---|---|
| 2109A-10 | 0 - 1 | 0-100-0 | 57mm | £92.30 |
| |
| 2110A-10 | 0 - 1 | 0-100 | 57mm | £114.00 |
| |
| 3109A-10 | 0 - 1 | 0-100-0 | 78mm | £161.00 |
| |
| 2050A-19 | 0 - 20 | 0-100 | 57mm | £92.10 |
| |
| 2052A-19 | 0 - 30 | 0-100 | 57mm | £119.00 |
| |
| 3052A-19 | 0 - 30 | 0-100 | 78mm | £191.00 |
|
Prices in the above table do not include calibration.

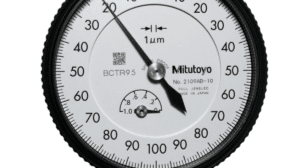

Standard Type, 1 mm Range, 0.001 mm Graduation This is a standard dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
| Weight | 148 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (mm) | |
| Graduation (mm) | |
| R MPE (Repeatability) (ยตm) | 3, 1 |
| Standard | |
| MPE measuring range (ยตm) | 20, 25, 5 |
| Range per rev. (mm) | 1 mm, 0.1 mm, 0.2 mm |
| Scale | 0-100, 0-100-0 |
| MPE any 1/10 revolution | 10, 2.5, 6, 7 |
| MPE any 1/2 revolution | 10, 11, 4 |
| MPE any 1 revolution | 11, 12, 4.5 |
| Coaxial revolution counter | Yes |
| Stem (mm) | |
| Digital/Analog | |
| Balanced dial | Yes |
| Continuous dial | Yes |
| Double scale spacing | Yes |
| Shockproof | Yes |
| Cushioned end point | Yes |
| Contact point | |
| Dial Reading | 0-100, 0-100-0 |
| Dial Face Diameter | 57mm, 78mm |
