£120.00 – £165.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 2901A-10 | 0 - 0.16 (plunger stroke: 4.1) | £120.00 |
| |
| 2900A-10 | 0 - 0.08 (plunger stroke: 4) | £129.00 |
| |
| 1900A-10 | 0 - 0.1 (plunger stroke: 2) | £165.00 |
|
Prices in the above table do not include calibration.

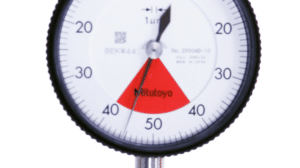

Graduation 0.001 mm This is a one revolution dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.
| Weight | 149 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Type | |
| Indicator Type | Plunger Type |
| Range (mm) | 0 – 0.08 (plunger stroke: 4), 0 – 0.1 (plunger stroke: 2), 0 – 0.16 (plunger stroke: 4.1) |
| Graduation (mm) | |
| R MPE (Repeatability) (µm) | 1 |
| Standard | |
| MPE measuring range (µm) | 3, 4 |
| Range per rev. (mm) | 0.1 mm, 0.14 mm, 0.2 mm |
| Scale | 0-100-0, 0-50-0, 50-0-50 |
| MPE any 1/10 revolution | 2 |
| One revolution | Yes |
| Stem (mm) | |
| Digital/Analog | |
| Balanced dial | Yes |
| Shockproof | Yes |
| Contact point |
