From £88.80
Calibration options available
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 2929A | 0 - 0.8 (plunger stroke: 5) | £88.80 |
| |
| 1929A | 0 - 1 (plunger stroke: 3.5) | £94.40 |
| |
| 2959A | 0 - 1.6 (plunger stroke: 5) | £150.00 |
| |
| 2928A | 0 - 4 (plunger stroke: 10) | £155.00 |
|
Prices in the above table do not include calibration.

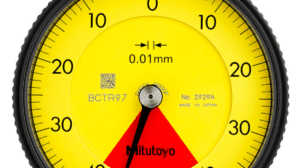

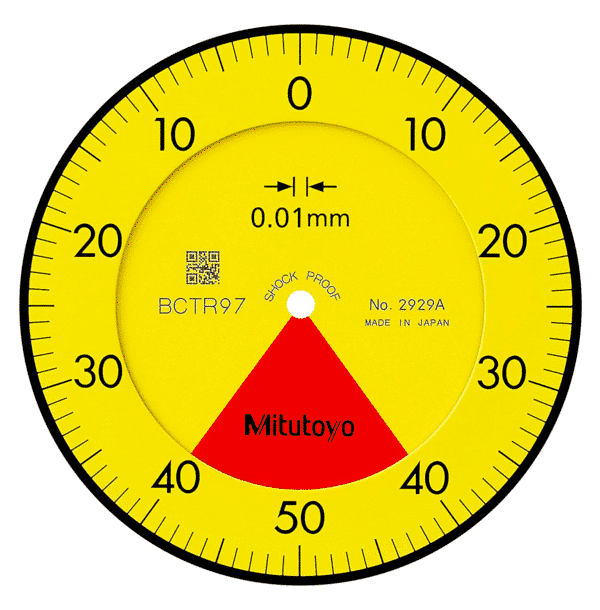

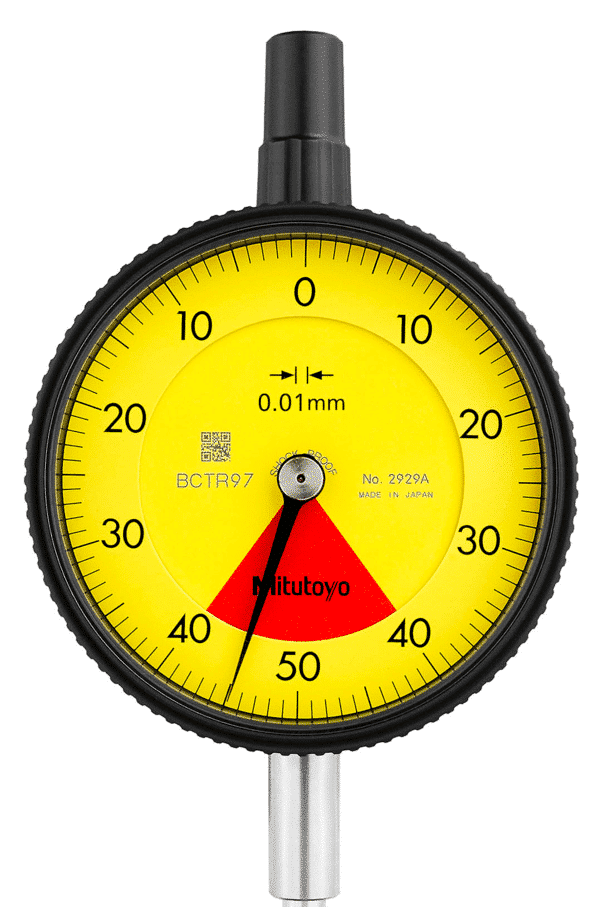

Graduation 0.01 / 0,1 mm This is a one revolution dial indicator. It offers you the following benefits:
Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.
| Weight | 145 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Type | |
| Indicator Type | Plunger Type |
| Range (mm) | 0 – 0.8 (plunger stroke: 5), 0 – 1 (plunger stroke: 3.5), 0 – 1.6 (plunger stroke: 5), 0 – 4 (plunger stroke: 10) |
| R MPE (Repeatability) (µm) | 3, 20 |
| Graduation (mm) | |
| Standard | |
| MPE measuring range (µm) | 25, 7, 9 |
| Range per rev. (mm) | 1 mm, 1.4 mm, 2 mm, 5 mm |
| Scale | 0-100-0, 0-2.5-0, 0-50-0, 50-0-50 |
| MPE any 1/10 revolution | 5, 15 |
| One revolution | Yes |
| Stem (mm) | |
| Digital/Analog | |
| Balanced dial | Yes |
| Shockproof | Yes |
| Contact point |
