Mitutoyo Dial Indicator Thickness Gauge, Lens Thickness (Inch)

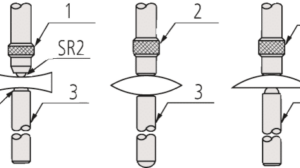

Diagram of Application for Mitutoyo Dial Indicator Thickness Gauge, Lens Thickness

SKU: 7312A | Manufacturer: Mitutoyo

£140.00

Calibration options available

All prices are exclusive of UK VAT (where applicable)

Calibration Information: Dial Indicators, Dimensional, Indicators

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

Description

This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

Specification

Weight	215 g
Family	Series 7
Unit	Inch
Calibration Type	UKAS
Indicator Type	Plunger Type
Range (inch)	0 – 0.5
Graduation (inch)	0.001 "
Feature	Adjustable anvil
Max. measuring depth	1.2"
Accuracy (inch)	±0.001"
Contact point	Thread # 4-48UNF
Parallelism (mm)	5 µm
