From £191.00
Calibration options available
| SKU | Range (inch) | Stylus Length | Price | ||
|---|---|---|---|---|---|

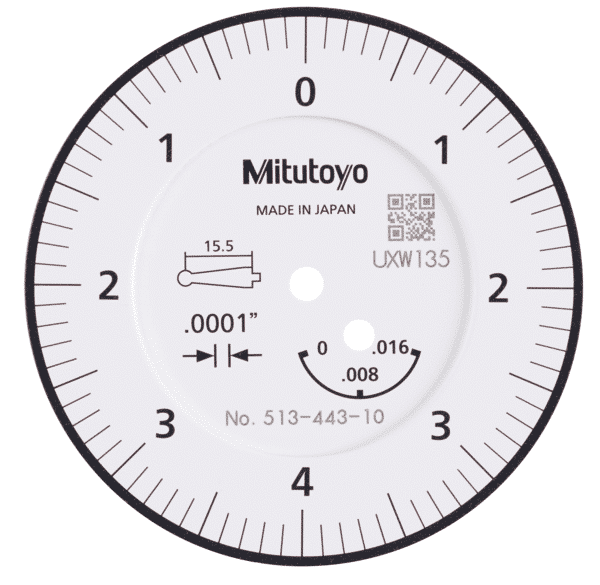

| 513-443-10T | 0 - 0.016 | 19mm | £223.00 |
| |
| 513-442-10T | 0 - 0.6 | 19.9mm | £208.00 |
| |
| 513-446-10T | 0 - 0.6 | 33.9mm | £191.00 |
|
Prices in the above table do not include calibration.
A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
| Weight | 48 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Lever Type |
| Range (inch) | |
| Graduation (inch) | |
| Stylus Length | 19.9mm, 19mm, 33.9mm |

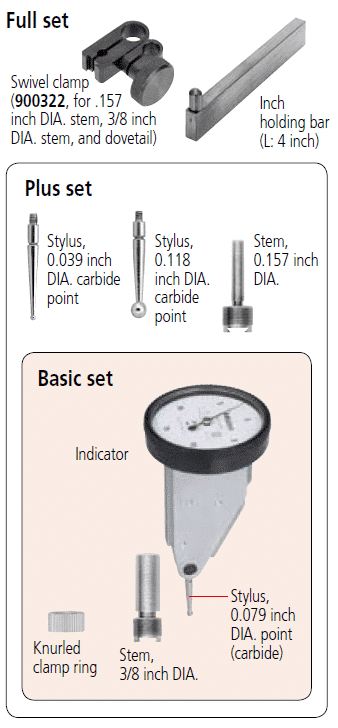

| Feature | Full set |
| H MPE (Hysteresis) (inch) | 0.0001", 0.0002" |
| R MPE (Repeatability) (inch) | ±0.00004", ±0.0002" |
| Scale | 0-15-0, 0-4-0 |
| Accuracy (inch) | |
| Digital/Analog | |
| Contact point |
