Mitutoyo Dial Test Indicator Horizontal 20° (Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)FeaturePrice
513-444-10E0 - 1.6Basic set£159.00

Add to Basket

513-444-10T0 - 1.6Full set£203.00

Add to Basket

513-445-10E0 - 0.4Basic set£191.00

Add to Basket

513-445-10T0 - 0.4Full set£218.00

Add to Basket

Prices in the above table do not include calibration.

Description

This is a Dial Test Indicator (Lever Type) which offers you the following benefits: Drastically enhanced durability, sensitivity and visibility. Glare-free flat crystal face allows easy reading of graduations. O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face. The stylus length is on the dial face to reorder a replacement Multi-layer coatings on the crystal.

Specification

Weight 48 g
Family

Unit

Calibration Type

Indicator Type

Lever Type

Range (mm)

,

R MPE (Repeatability) (µm)

3, 1

Graduation (mm)

,

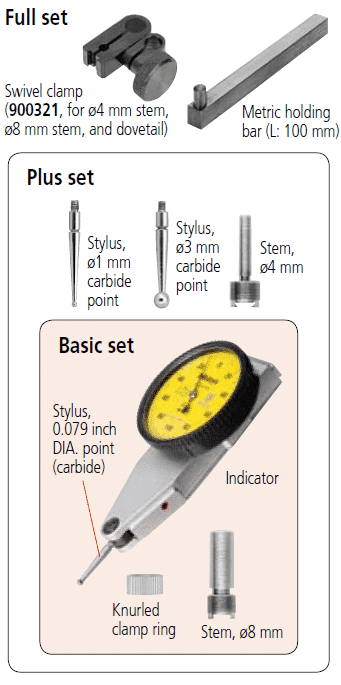

Feature

Basic set, Full set

MPE measuring range (µm)

16, 6

Scale

0-100-0, 0-40-0

MPE any 1/2 revolution

3, 8

MPE any 1 revolution

10, 5

Carbide stylus tip ø2 mm No.

103006, 103011

Digital/Analog

Contact point

MPE any 10 scale divisions

2, 5
