Mitutoyo Dial Test Indicator Horizontal (Inch)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (inch)FeatureGraduation (inch)Stylus LengthPrice
513-403-10E0 - 0.008Basic set0.0001"19mm£131.00

Add to Basket

513-407-10T0 - 0.008Full set0.0000519mm£170.00

Add to Basket

513-403-10T0 - 0.008Full set0.0001"19mm£173.00

Add to Basket

513-402-10E0 - 0.03Basic set0.000519.9mm£108.00

Add to Basket

513-412-10E0 - 0.03Basic set0.000533.9mm£139.00

Add to Basket

513-402-10T0 - 0.03Full set0.000519.9mm£142.00

Add to Basket

513-412-10T0 - 0.03Full set0.000533.9mm£167.00

Add to Basket

513-907-10E0 - 0.03Basic set - with magnet stand0.000520.9mm£174.00

Add to Basket

Prices in the above table do not include calibration.

Description

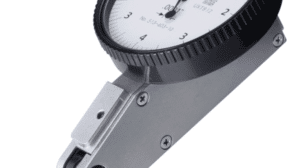

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Specification

Weight 58 g
Family

Calibration Type

Indicator Type

Lever Type

Range (inch)

,

Feature

Basic set, Basic set – with magnet stand, Full set

Graduation (inch)

, ,

H MPE (Hysteresis) (inch)

0.0001", 0.0002"

R MPE (Repeatability) (inch)

±0.00004", ±0.0002"

Accuracy (inch)

,

Digital/Analog

Contact point

Stylus Length

19.9mm, 19mm, 20.9mm, 33.9mm
