SKURange (mm)FeatureStylus LengthPrice
513-409-10E0 - 0.2Basic set18.7mm£150.00

Add to Basket

513-409-10T0 - 0.2Full set18.7mm£173.00

Add to Basket

513-406-10E0 - 0.7Basic set19.9mm£128.00

Add to Basket

513-406-10T0 - 0.7Full set19.9mm£150.00

Add to Basket

Prices in the above table do not include calibration.

Description

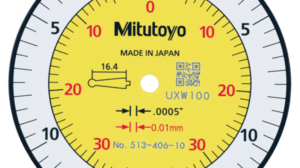

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Specification

Weight 58 g
Family

Unit

,

Calibration Type

Indicator Type

Lever Type

Range (mm)

,

R MPE (Repeatability) (µm)

1

Graduation (mm)

,

Accuracy (mm/µm)

MPE measuring range (µm)

3

H MPE (Hysteresis) (inch)

0.0002"

R MPE (Repeatability) (inch)

±0.0002"

MPE any 1/2 revolution

3

Accuracy (inch)

Digital/Analog

Contact point

MPE any 10 scale divisions

2

Feature

Basic set, Full set

Stylus Length

18.7mm, 19.9mm, 19mm, 20.9mm, 33.9mm
