From £105.00
Calibration options available
| SKU | Range (inch) | Feature | Price | ||
|---|---|---|---|---|---|
| 513-504-10E | 0 - 0.01 | Basic set with 9.52 mm stem | £143.00 |
| |
| 513-504-10T | 0 - 0.01 | Full set | £159.00 |
| |
| 513-512-10E | 0 - 0.02 | Basic set with 9.52 mm stem | £132.00 |
| |
| 513-518-10E | 0 - 0.04 | Basic set with 9.52 mm stem | £105.00 |
| |
| 513-518-10T | 0 - 0.04 | Full set | £133.00 |
|
Prices in the above table do not include calibration.

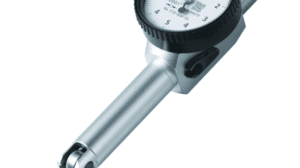

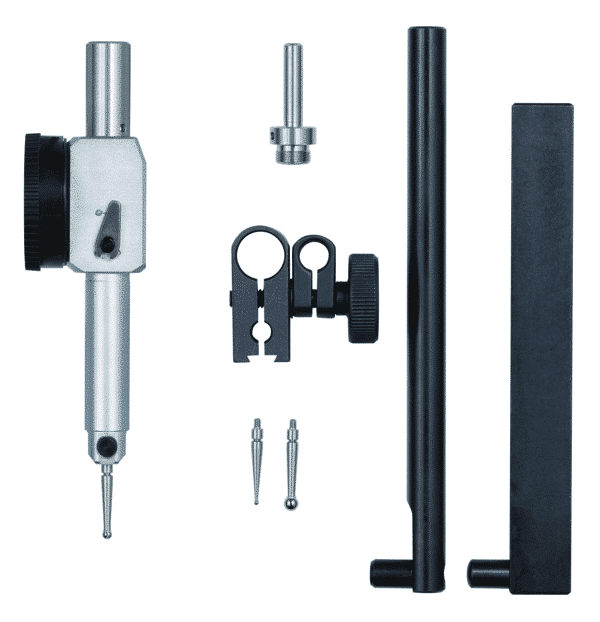

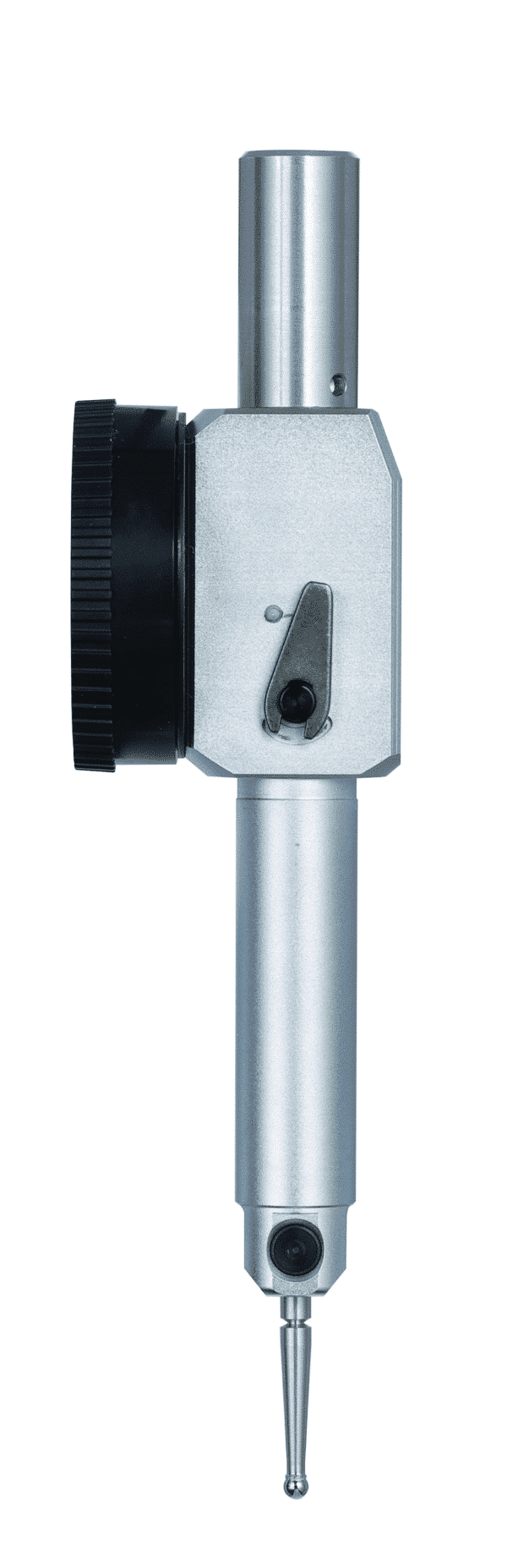

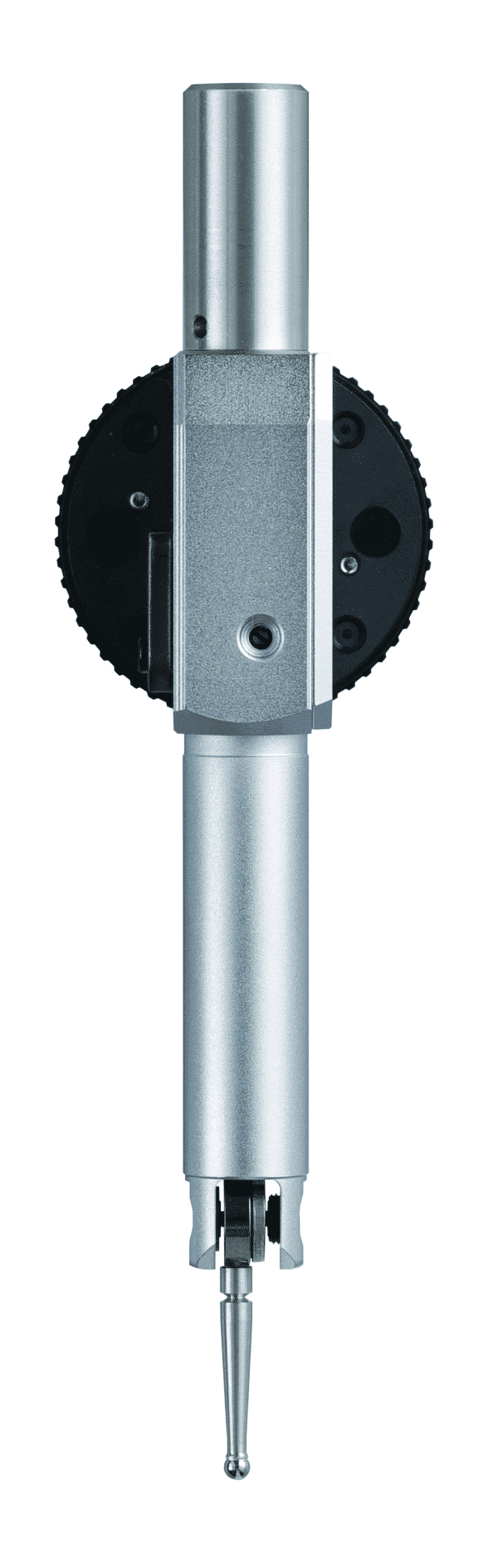

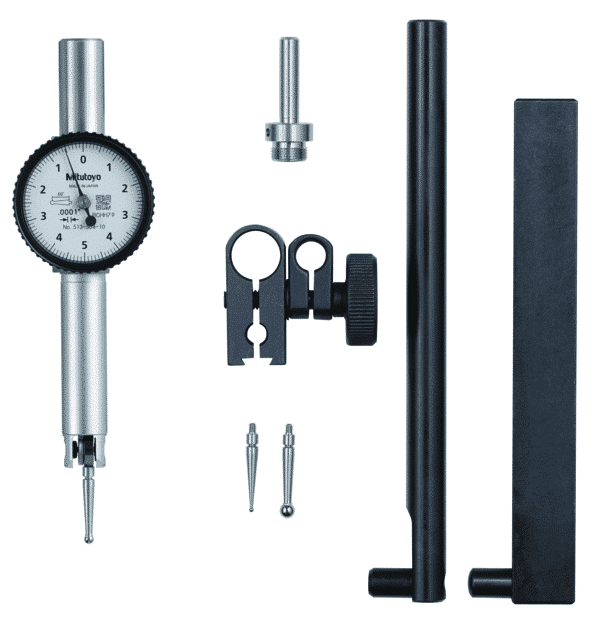

A Mitutoyo versatile lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications, especially where the slim round body (Ø 9.5mm) is an advantage for reaching locations with restricted access. The measuring direction is easily reversed and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
| Weight | 50 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Lever Type |
| Range (inch) | |
| Graduation (inch) | |
| Feature | Basic set with 9.52 mm stem, Full set |
| H MPE (Hysteresis) (inch) | 0.0001" |
| R MPE (Repeatability) (inch) | ±0.00004", ±0.0002", ±0.0004" |
| Measuring force | |

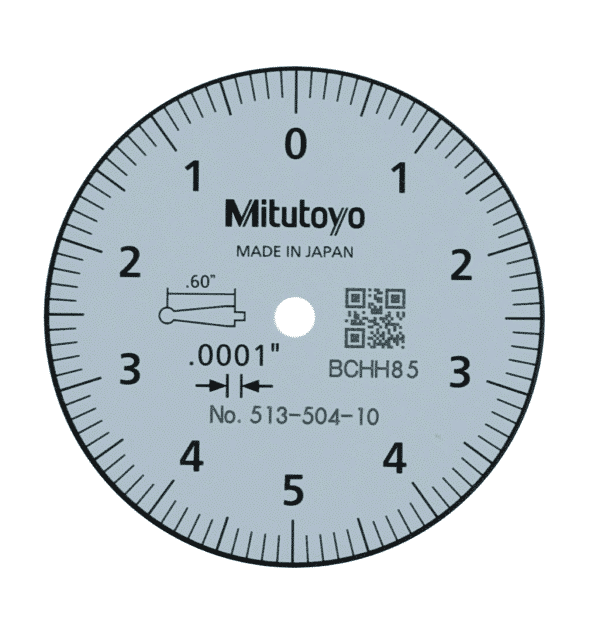

| Scale | 0-10-0, 0-20-0, 0-5-0 |
| Carbide stylus tip ø2 mm No. | 103007, 129949, 131324 |
| Digital/Analog | |
| Contact point |
