£103.00 – £174.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Feature | Price | ||
|---|---|---|---|---|---|
| 513-455-10E | 0 - 0.2 | Basic set | £162.00 |
| |
| 513-455-10T | 0 - 0.2 | Full set | £174.00 |
| |
| 513-456-10E | 0 - 0.5 | Basic set | £120.00 |
| |
| 513-454-10A | 0 - 0.5 | Plus set | £103.00 |
| |
| 513-454-10E | 0 - 0.8 | Basic set | £103.00 |
| |
| 513-454-10T | 0 - 0.8 | Full set | £155.00 |
|
Prices in the above table do not include calibration.

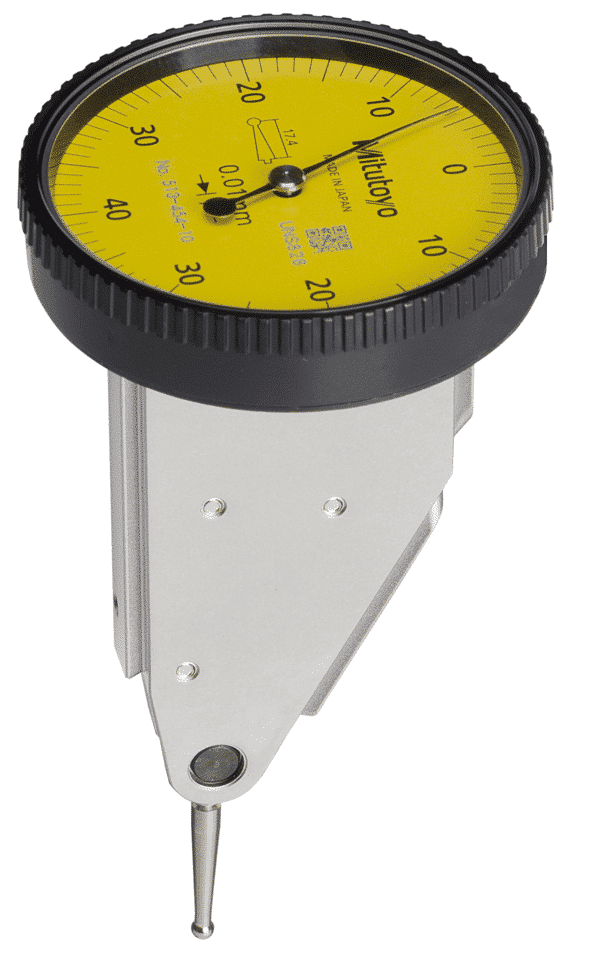

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.
| Weight | 46 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Lever Type |
| Range (mm) | |
| Graduation (mm) | |
| R MPE (Repeatability) (µm) | 3, 1 |
| Feature | Basic set, Full set, Plus set |
| MPE measuring range (µm) | 3, 5, 8 |

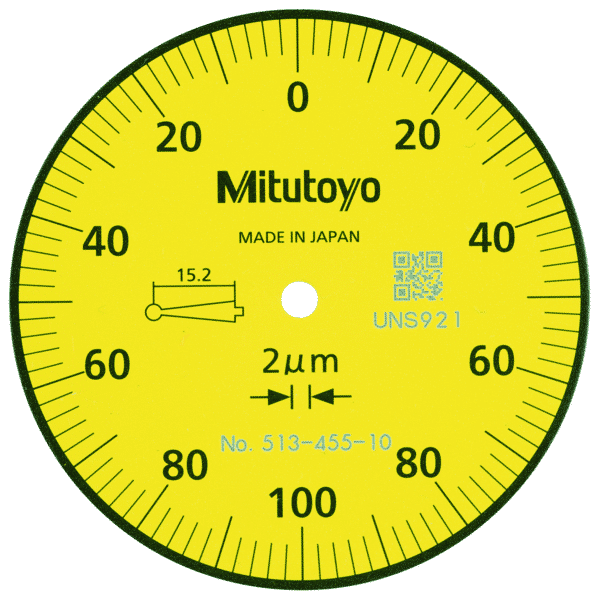

| Scale | 0-100-0, 0-40-0 |
| MPE any 1/2 revolution | 3, 6 |
| Carbide stylus tip ø2 mm No. | 103006, 103011, 137557 |
| Digital/Analog | |
| Contact point | |
| MPE any 10 scale divisions | 2, 5 |
