From £1,250.00
Calibration options available
SKU | Range (inch) | Price | ||
---|---|---|---|---|
568-461 | 0.275 - 0.35 | £1,270.00 |
| |
568-462 | 0.35 - 0.425 | £1,250.00 |
| |
568-463 | 0.425 - 0.5 | £1,250.00 |
| |
568-464 | 0.5 - 0.65 | £1,250.00 |
| |
568-465 | 0.65 - 0.8 | £1,250.00 |
| |
568-466 | 0.8 - 1 | £1,300.00 |
| |
568-467 | 1 - 1.2 | £1,300.00 |
| |
568-468 | 1.2 - 1.6 | £1,420.00 |
| |
568-469 | 1.6 - 2 | £1,420.00 |
| |
568-470 | 2 - 2.5 | £1,450.00 |
| |
568-471 | 2.5 - 3 | £1,450.00 |
| |
568-472 | 3 - 3.5 | £1,620.00 |
| |
568-473 | 3.5 - 4 | £1,620.00 |
| |
568-474 | 4 - 4.5 | £1,690.00 |
| |
568-475 | 4.5 - 5 | £1,710.00 |
|
Prices in the above table do not include calibration.

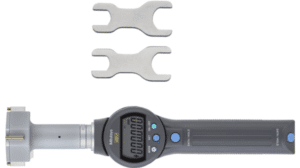

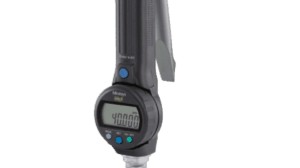

A unique, Mitutoyo digital bore gauge that enables measurements to be made more accurately and more quickly than ever before. Trigger-grip operation ensures fast, easy measurement and a constant measurement force for maximum repeatability on the shop floor. The Borematic ABSOLUTE scale retains the last setting for the life of the battery, therefore repeated setting is not necessary. Large-digit, rotatable LCD display aids convenient, error-free reading.
Weight | 910 g |
---|---|
Unit | |
Range (inch) | 0.275 – 0.35, 0.35 – 0.425, 0.425 – 0.5, 0.5 – 0.65, 0.65 – 0.8, 0.8 – 1, 1 – 1.2, 1.2 – 1.6, 1.6 – 2, 2 – 2.5, 2.5 – 3, 3 – 3.5, 3.5 – 4, 4 – 4.5, 4.5 – 5 |
Family | |
Calibration Type | |
Measuring span (inch) | |
Measuring face | Titanium coated, Titanium coated tungsten carbide Taper: tungsten carbide |
Measuring depth (inch) | |
Measuring method | |
Accuracy Specification | ±0,00025", ±0,0003" |
Micrometer Head stroke (inch) | 0 |

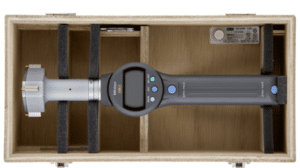

Delivered | Including box, key, 1 battery, certificate of inspection |
Digital/Analog | |
Display |
