£1,840.00 – £4,830.00
| SKU | Range (inch) | Feature | Price | ||
|---|---|---|---|---|---|
| 568-928 | 0.275 - 0.5 | Interchangeable measuring heads | £1,840.00 |
| |
| 568-965 | 0.275 - 0.5 | Full set | £4,180.00 |
| |
| 568-929 | 0.5 - 1 | Interchangeable measuring heads | £2,020.00 |
| |
| 568-966 | 0.5 - 1 | Full set | £4,330.00 |
| |
| 568-930 | 1 - 2 | Interchangeable measuring heads | £2,420.00 |
| |
| 568-967 | 1 - 2 | Full set | £4,830.00 |
| |
| 568-968 | 2 - 3 | Full set | £3,460.00 |
| |
| 568-936 | 2 - 4 | Interchangeable measuring heads | £3,990.00 |
| |
| 568-969 | 3 - 4 | Full set | £3,860.00 |
|
Prices in the above table do not include calibration.

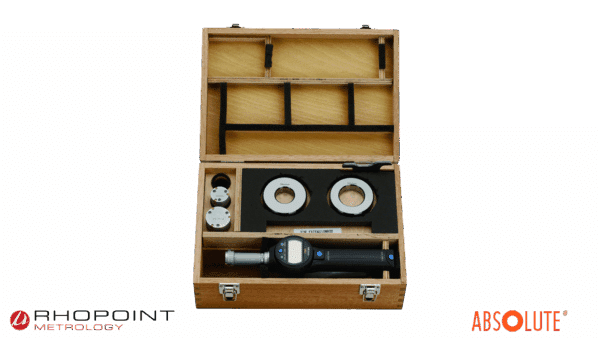

Mitutoyo Interchangeable-Head Bore Gauge Set 0,5-1″
| Weight | 930 g |
|---|---|
| Unit | |
| Range (inch) | |
| Family | ABSOLUTE Borematic Complete Unit Sets, ABSOLUTE Borematic Interchangeable Head Sets |
| Calibration Type | |
| Additional Calibration Type | UKAS |
| Setting rings included | ø0.35" (177-179) ø0.425" (177-283), ø0.65" (177-182) ø0.8" (177-287), ø1.2" (177-289) ø1.6" (177-291), ø2.5" (177-315), ø2.5" (177-315) ø3.5" (177-319), ø3.5" (177-319) |
| Measuring span (inch) | |
| Measuring face | Titanium coated carbide taper: tungsten carbide, Titanium coated hardened steel Taper: tungsten carbide |
| Measuring depth (inch) | |
| Measuring method | |
| Accuracy Specification | 0,275-0,8": ±0,00025" 0,8-5": ±0,0003" |
| Micrometer Head stroke (inch) | 0 |
| Delivered | Including box, key, 1 battery, certificate of inspection |
| Digital/Analog | |
| Display | |
| Feature | Full set, Interchangeable measuring heads |
