£962.00
Calibration options available
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 570-304 | 0 - 600 |
|
Prices in the above table do not include calibration.

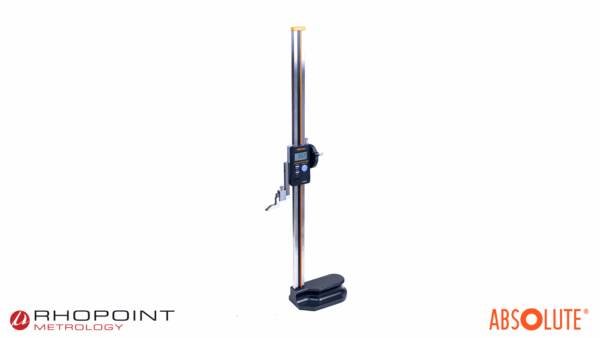

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:
Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.

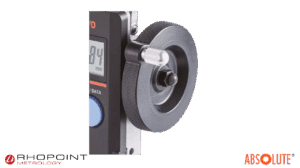

It comes with large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided.

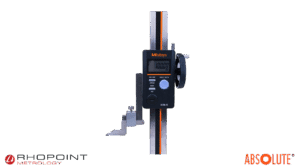

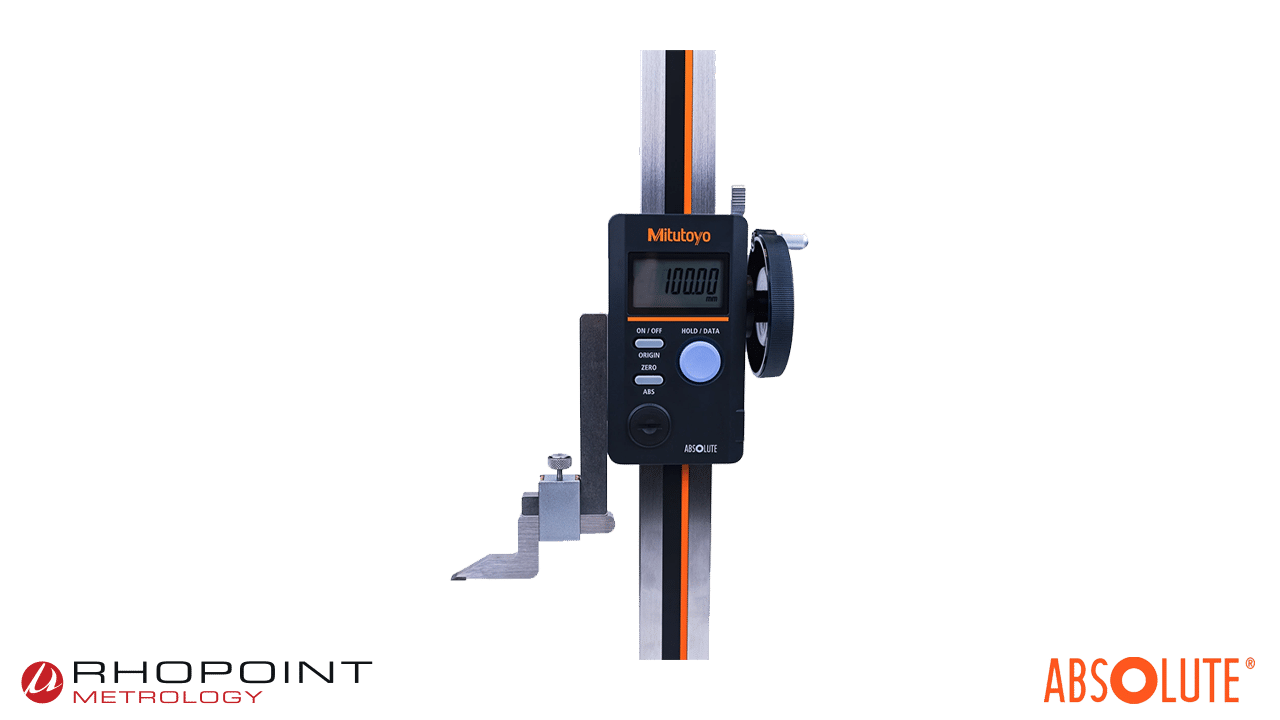

A large display and buttons for easy operability.
| Weight | 6400 g |
|---|---|
| Unit | |
| Range (mm) | |
| Family | |
| Digital step | 0.01 mm |
| Accuracy (mm) | |
| Calibration Code | |
| Calibration Type | |
| Max. Permissible Error E (mm) | ±0.05 mm |
| Max. Permissible Error E (in) | ±0.05 mm |
| Max. response speed | Unlimited |
| Mass | |
| Display | |
| Power supply | 1 battery SR-44 |
| Delivered | Including 1 battery, scriber and scriber clamp |
| Battery life | Approx. 20000 hours |
| Digital/Analog |
