SKUUnitRange (inch)Range (mm)Base (W x T)Digital stepPrice
547-251AMetric0 - 20063.5 x 16 mm0.001 mm£538.00

Add to Basket

547-211AMetric0 - 20063.5 x 16 mm0.01 mm£461.00

Add to Basket

547-212AMetric0 - 200101.6 x 16 mm0.01 mm£472.00

Add to Basket

547-252AMetric0 - 200101.6 x 16 mm0.001 mm£548.00

Add to Basket

547-217AInch/Metric0 - 80 - 2002.5" x 0.63"0.0005" / 0.01 mm£461.00

Add to Basket

547-257AInch/Metric0 - 80 - 2002.5" x 0.63"0.00002" / 0.0005 mm£538.00

Add to Basket

547-218AInch/Metric0 - 80 - 2004" x 0.63"0.0005" / 0.01 mm£472.00

Add to Basket

547-258AInch/Metric0 - 80 - 2004" x 0.63"0.00002" / 0.0005 mm£548.00

Add to Basket

Prices in the above table do not include calibration.

Description

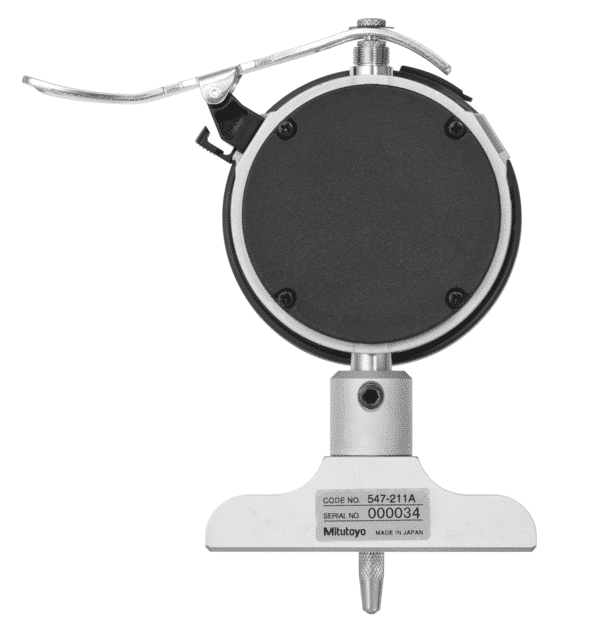

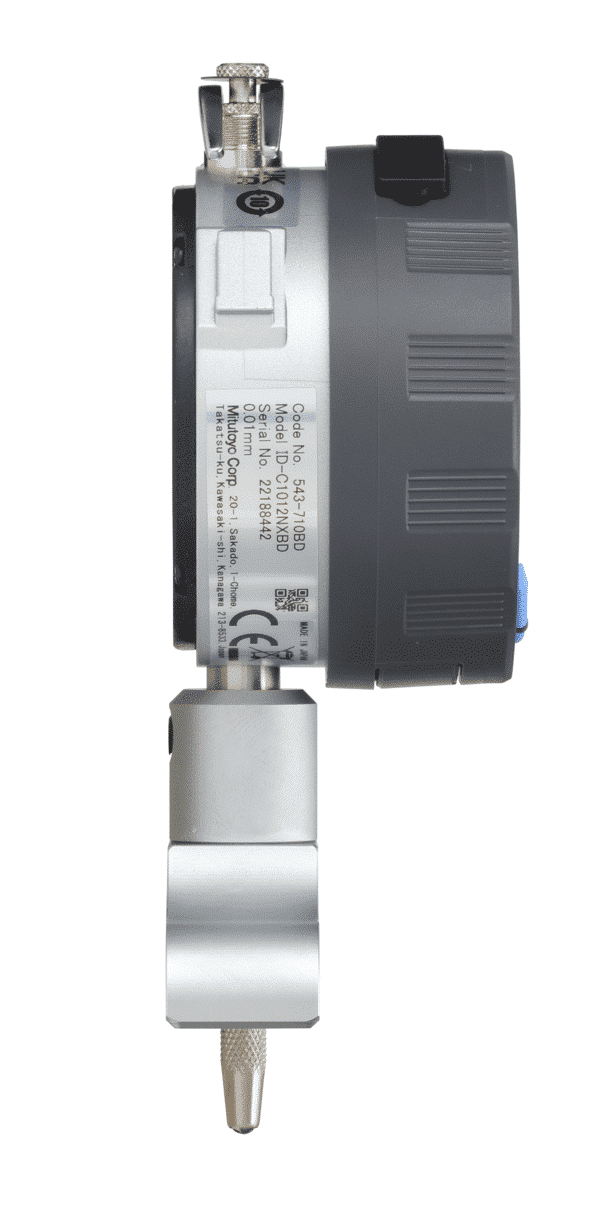

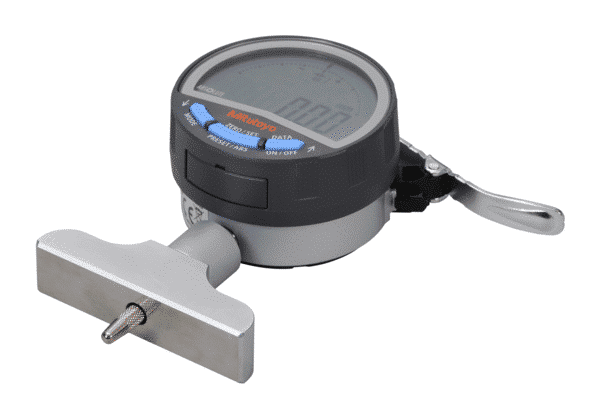

This ABSOLUTE Digimatic Indicator Depth Gauge offers you the following benefits: It is equipped with the ABSOLUTE Digimatic Indicator ID-C. It has a hardened, precision ground and micro-lapped reference face on its base.

Specification

Weight 280 g
Unit

,

Range (inch)

Range (mm)

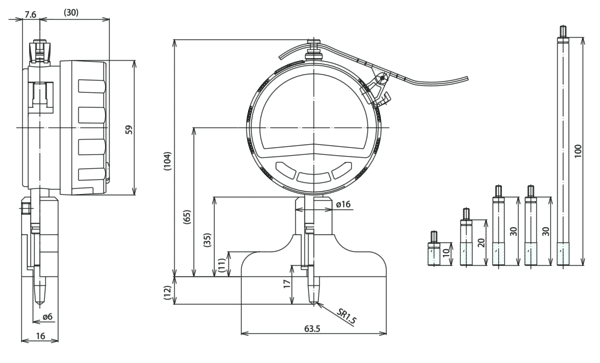

Base (W x T)

, , ,

Digital/Analog

Calibration Type

Family

Base flatness (µm)

5 µm, 2 µm

On/Off

Yes

Max. response speed

Unlimited

Delivered

Including box and extensions 0.5, 1, 2, 4", contact point 21JZA242, Including box and extensions 0.5, 1, 2, 4", contact point 21JZA243, Including box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA224, Including box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA225

Power supply

1 battery CR2032 (3V)

Base flatness (inch)

0, 0.0002", 0.00008"

Graduation (inch)

Accuracy (mm)

,

Accuracy (inch)

, ,

Digital step

0.01 mm, 0.00002" / 0.0005 mm, 0.0005 mm, 0.0005" / 0.01 mm, 0.001 mm
