From £962.00
Calibration options available
| SKU | Unit | Range (mm) | Range (inch) | Price | ||
|---|---|---|---|---|---|---|
| 192-630-10 | Inch/Metric | 0 - 300 | 0 - 12 | £962.00 |
| |
| 192-631-10 | Inch/Metric | 0 - 450 | 0 - 18 | £1,350.00 |
| |
| 192-632-10 | Inch/Metric | 0 - 600 | 0 - 24 | £1,420.00 |
| |
| 192-633-10 | Inch/Metric | 0 - 1000 | 0 - 40 | £2,840.00 |
|
Prices in the above table do not include calibration.

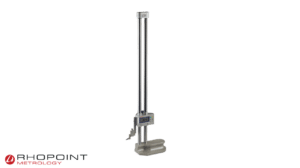

A Mitutoyo digital height gauge, twin column design. Standard-type functionality. Digimatic data output. An extensive range of accessories extends the application range.
| Weight | 19200 g |
|---|---|
| Unit | |
| Range (mm) | |
| Range (inch) | |
| Family | |
| Digital step | 0.0005/0.0002" or 0.01/0.005 mm |
| Accuracy (mm) | |
| Accuracy (inch) | |
| Calibration Code | |
| Calibration Type | |
| Max. Permissible Error E (mm) | ±0.02 mm, ±0.05 mm, ±0.07 mm |
| Max. Permissible Error E (in) | ±0.001", ±0.002", ±0.003" |
| Max. response speed (mm/s) | 500 |
| Mass | |
| Display | |
| Power supply | 1 battery SR-44 |
| Delivered | Including scriber, scriber holder, 1 battery and cover |
| Battery life | approx. 3500 hours |
| Mm / inch switching | Yes |
| Digital/Analog |
