£481.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 543-310B-10 | 0 - 12.7 |
|
Prices in the above table do not include calibration.

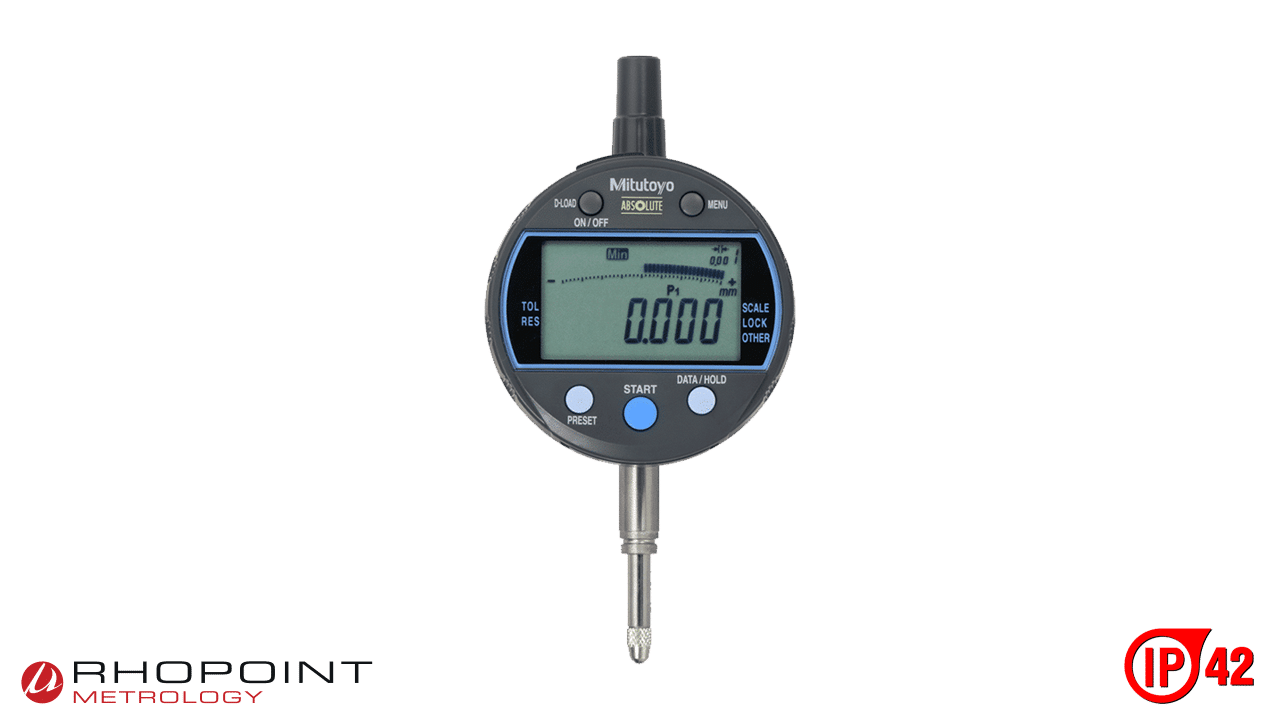

This indicator is designed for inside diameter measurement applications on bore gauges It offers the following benefits: Minimum value holding function that allows you to easily detect a hole diameter Analogue bar graph in the display (12 different scales switchable) The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement GO/±NG tolerance judgement function A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably Easy indicator setup via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software
| Weight | 170 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |

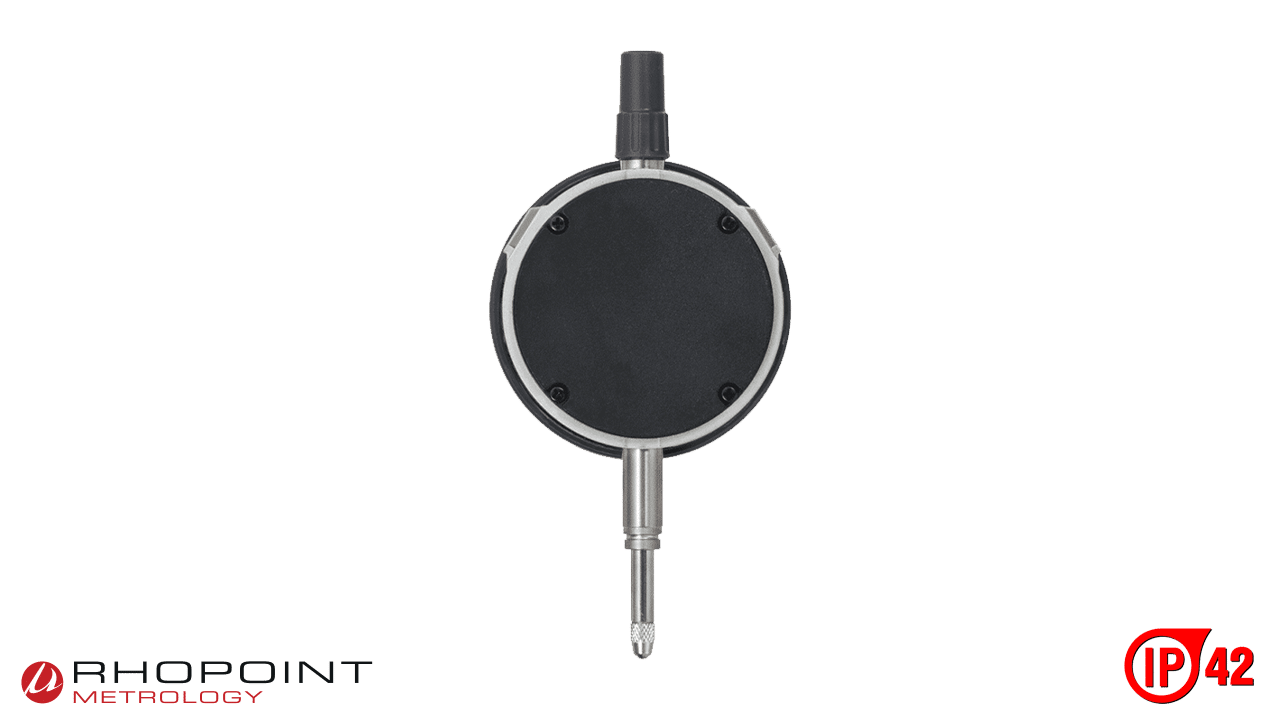

| Backplate | Flat |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| Digital step (mm) | |
| H MPE (Hysteresis) (mm) | 0.002 mm |
| R MPE (Repeatability) (mm) | 0.002 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Counting direction switchable | Yes |
| PRESET | Yes |
| Digital/Analog | |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Battery life | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Display | |
| Contact point | |
| Power supply | 1 battery CR2032 |
| Inch/Metric switchable | No |
