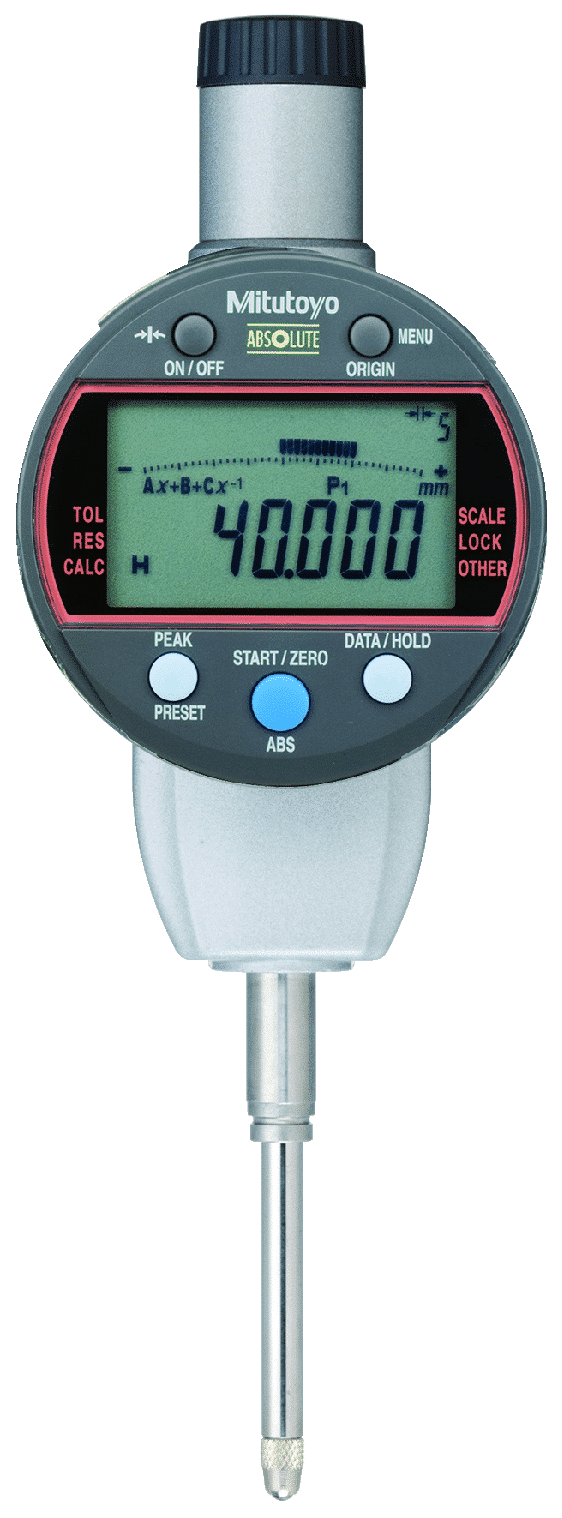

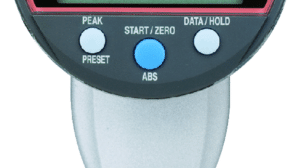

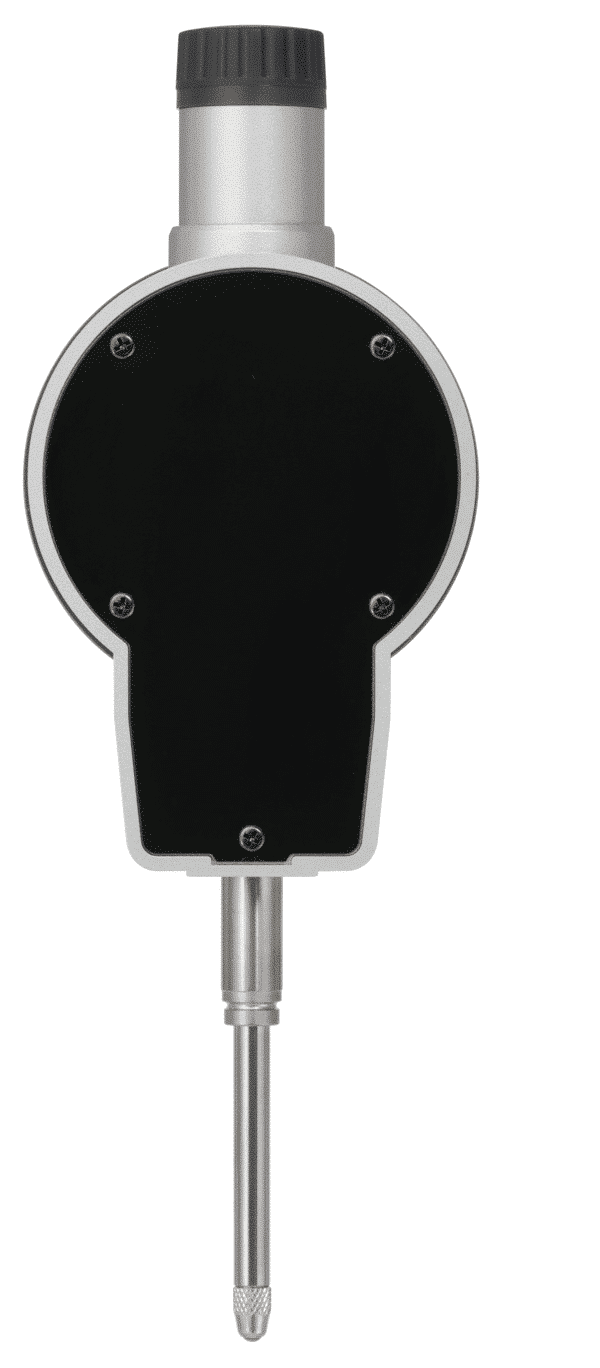

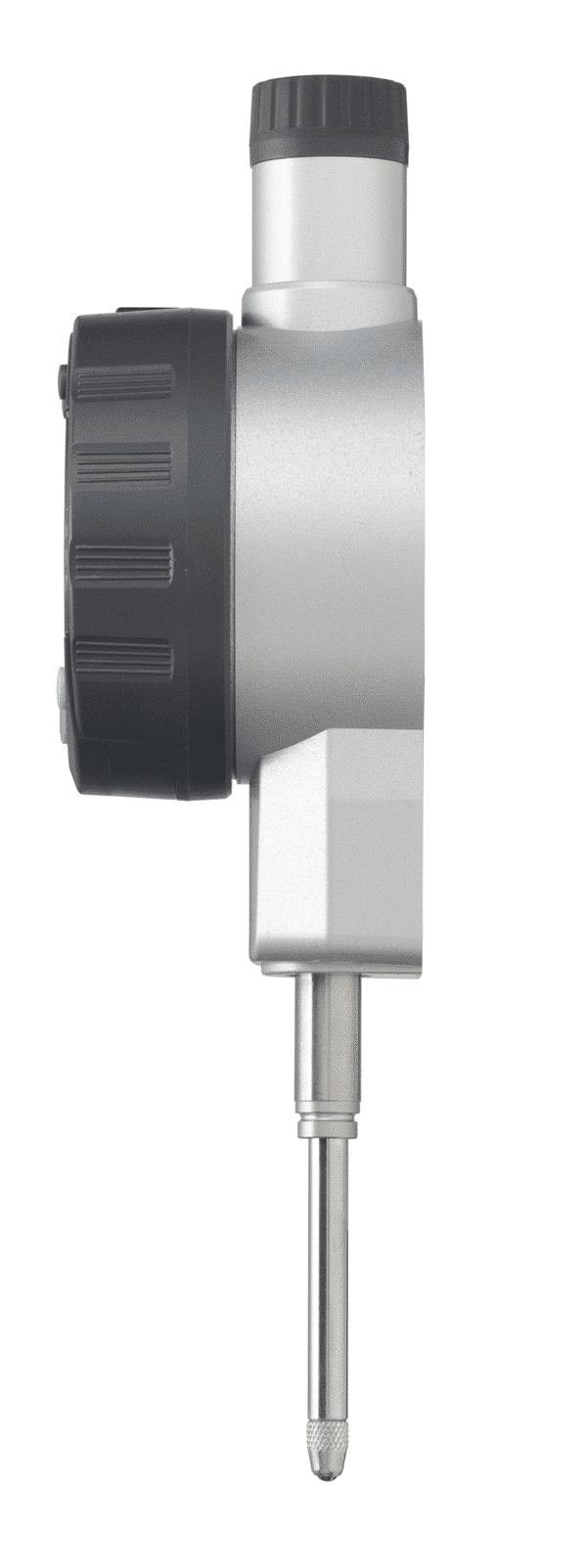

Mitutoyo Digital Indicator Calculation ID-C (Inch/Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (inch)Range (mm)StandardPrice
543-341B-100 - 0.50 - 12.7EN ISO£496.00

Add to Basket

543-342B-100 - 0.50 - 12.7ASME/ANSI/AGD£496.00

Add to Basket

543-592B-100 - 10 - 25.4ASME/ANSI/AGD£504.00

Add to Basket

543-596B-100 - 20 - 50.8EN ISO£701.00

Add to Basket

543-597B-100 - 20 - 50.8ASME/ANSI/AGD£701.00

Add to Basket

Prices in the above table do not include calibration.

Description

This indicator allows you to use a calculation function for the measured value Ax+B+Cx -1 The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement) Coefficients A,B and C are freely definable. X = displacement of the plunger Analogue bar graph in the display (14 different scales switchable)   GO/±NG tolerance judgement function MAX/MIN/RANGE function to measure peak values A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup  via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software

Digital step is switchable (12 steps)

Specification

Weight 170 g
Family

Unit

Calibration Type

Indicator Type

Plunger Type

Backplate

Flat

Range (inch)

, ,

Range (mm)

, ,

Graduation (inch)

Graduation (mm)

Standard

,

Digital step (mm)

Digital step (inch)

H MPE (Hysteresis) (mm)

0.002 mm

H MPE (Hysteresis) (inch)

0.0001"

R MPE (Repeatability) (mm)

0.002 mm

R MPE (Repeatability) (inch)

0.0001"

Protection

Scale

Electrostatic capacitance type absolute linear encoder

Stem Ø (mm)

,

Counting direction switchable

Yes

PRESET

Yes

Digital/Analog

Alarm

Low voltage, ABS composition error, overflow error, setting error

Battery life

Standard mode: approx. 1 year fast mode: approx. 4.5 month

Display

Contact point

,

Power supply

1 battery CR2032

Inch/Metric switchable

Yes
