£496.00 – £685.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 543-340B-10 | 0 - 12.7 | £496.00 |
| |
| 543-590B-10 | 0 - 25.4 | £529.00 |
| |
| 543-595B-10 | 0 - 50.8 | £685.00 |
|
Prices in the above table do not include calibration.

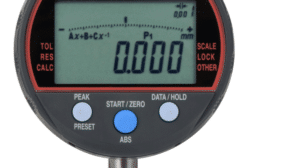

This indicator allows you to use a calculation function for the measured value Ax+B+Cx -1 The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement) Coefficients A,B and C are freely definable. X = displacement of the plunger Analogue bar graph in the display (14 different scales switchable)  GO/±NG tolerance judgement function MAX/MIN/RANGE function to measure peak values A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup  via a setup menu A USB interface box can be used to set up the indicator from PC via dedicated software
Digital step is switchable (12 steps)
| Weight | 170 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Backplate | Flat |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| Digital step (mm) | |
| H MPE (Hysteresis) (mm) | 0.002 mm |
| R MPE (Repeatability) (mm) | 0.002 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Counting direction switchable | Yes |
| PRESET | Yes |
| Digital/Analog | |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Battery life | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Display | |
| Contact point | |
| Power supply | 1 battery CR2032 |
| Inch/Metric switchable | No |
