£266.00 – £358.00
Please choose options to view available calibrations and pricing
| SKU | Range (inch) | Range (mm) | Graduation (inch) | Graduation (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 543-586 | 0 - 0.2 | 0 - 5.08 | 0.00005/0.0005 | 0.001/0.01 | £358.00 |
| |
| 543-581 | 0 - 0.2 | 0 - 5.08 | 0.0005 | 0.01 | £266.00 |
|
Prices in the above table do not include calibration.

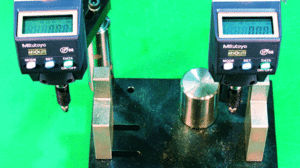

A Mitutoyo dustproof, waterproof, back-plunger type digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.
| Family | |
|---|---|
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (inch) | |
| Range (mm) | |
| Graduation (inch) | |
| Graduation (mm) | |
| Standard | |
| Feature | ANSI/AGD type |
| Digital step (mm) | |
| Digital step (inch) | |
| H MPE (Hysteresis) (mm) | 0.002 mm, 0.02 mm |
| H MPE (Hysteresis) (inch) | 0.0001", 0.001" |
| R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
| R MPE (Repeatability) (inch) | 0.0001", 0.0005" |
| Measuring force | |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Selectable resolution | Yes |
| Digital/Analog | |
| Alarm | Low voltage, counting value composition error, overflow error, tolerance limit setting error |
| Battery life | approx. 7000 hours |
| Display | |
| Contact point | |
| Power supply | 1 battery SR44 |
| Inch/Metric switchable | Yes |
| Resolution | 0.0005 inch / 0.01 mm |
