From £200.00
Calibration options available
| SKU | Backplate | Range (inch) | Range (mm) | Graduation (inch) | Graduation (mm) | Standard | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 543-712B | Flat | 0 - 0.5 | 0 - 12.7 | 0.00005 | 0.001 | ASME/ANSI/AGD | £271.00 |
| |
| 543-702B | Flat | 0 - 0.5 | 0 - 12.7 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | ASME/ANSI/AGD | £346.00 |
| |
| 543-701B | Flat | 0 - 0.5 | 0 - 12.7 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | EN ISO | £346.00 |
| |
| 543-711B | Flat | 0 - 0.5 | 0 - 12.7 | 0.0005 | 0.01 | EN ISO | Original price was: £280.00.£200.00Current price is: £200.00. |
| |
| 543-702 | Lug | 0 - 0.5 | 0 - 12.7 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | ASME/ANSI/AGD | £346.00 |
| |
| 543-712 | Lug | 0 - 0.5 | 0 - 12.7 | 0.0005 | 0.01 | ASME/ANSI/AGD | £271.00 |
| |
| 543-701 | Lug | 0 - 0.5 | 0 - 12.7 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | EN ISO | £346.00 |
| |
| 543-711 | Lug | 0 - 0.5 | 0 - 12.7 | 0.0005 | 0.01 | EN ISO | £271.00 |
| |
| 543-727B | Flat | 0 - 1 | 0 - 25.4 | 0.0005 | 0.01 | ASME/ANSI/AGD | £396.00 |
| |
| 543-722B | Flat | 0 - 1 | 0 - 25.4 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | ASME/ANSI/AGD | £493.00 |
| |
| 543-726B | Flat | 0 - 1 | 0 - 25.4 | 0.0005 | 0.01 | EN ISO | £396.00 |
| |
| 543-721B | Flat | 0 - 1 | 0 - 25.4 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | EN ISO | £498.00 |
| |
| 543-732B | Flat | 0 - 2 | 0 - 50.8 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | ASME/ANSI/AGD | £540.00 |
| |
| 543-737B | Flat | 0 - 2 | 0 - 50.8 | 0.0005 | 0.01 | ASME/ANSI/AGD | £487.00 |
| |
| 543-736B | Flat | 0 - 2 | 0 - 50.8 | 0.0005 | 0.01 | EN ISO | £487.00 |
| |
| 543-491B | Flat | 0 - 2 | 0 - 50.8 | 0.00005 | 0.001 | EN ISO | £540.00 |
| |
| 543-731B | Flat | 0 - 2 | 0 - 50.8 | 0.00002/0.00005/0.0001/0.0005 | 0.0005/0.00 | EN ISO | £540.00 |
|
Prices in the above table do not include calibration.
This is a multifunction standard indicator that is reliable and easy to use.
Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display
Model with 0,5 µm digital step is available
Measurements such as simple calculation and peak detection are possible
Equipped with a calibration schedule warning function
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.
| Weight | 165 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |

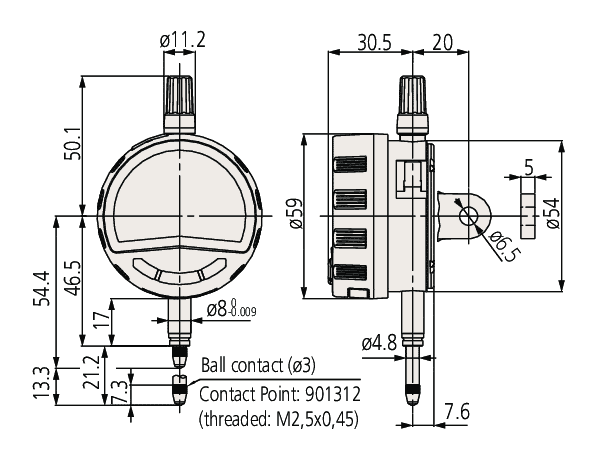

| Backplate | Flat, Lug |
| Range (inch) | |
| Range (mm) | |
| Graduation (inch) | |
| Graduation (mm) | |
| Standard | |
| No. Lug back plate | 543-491, 543-701, 543-702, 543-711, 543-712 |
| Digital step (mm) | |
| Digital step (inch) | |
| Digital step switchable | No, Yes |
| H MPE (Hysteresis) (mm) | 0.002 mm, 0.02 mm |
| H MPE (Hysteresis) (inch) | 0.00008", 0.0001", 0.001" |
| R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
| R MPE (Repeatability) (inch) | 0.00008", 0.0001", 0.0005" |
| Measuring force | |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Digimatic data output | |
| Digital/Analog | |
| Alarm | Low voltage, counting value composition error, overflow error, tolerance limit setting error, Low voltage, setting errors, sensor error, display overflow a.s.o. |
| Battery life | Approx. 2700 hours (continuous use), approx. 7000 hours |
| Display | |
| Contact point | Carbide ball, thread: M2.5×0.45, Carbide ball, thread: No.4-48UNF |
| Power supply | 1 battery CR2032, 1 battery SR44 |
| Inch/Metric switchable | Yes |
