£271.00 – £540.00
Please choose options to view available calibrations and pricing
| SKU | Backplate | Range (mm) | Digital step (mm) | Price | ||
|---|---|---|---|---|---|---|
| 543-710 | Lug | 0 - 12.7 | 0.01 mm | £271.00 |
| |
| 543-700 | Lug | 0 - 12.7 | 0.0005 mm/0.001 mm/0.01mm | £346.00 |
| |
| 543-710B | Flat | 0 - 12.7 | 0.01 mm | £271.00 |
| |
| 543-700B | Flat | 0 - 12.7 | 0.0005 mm/0.001 mm/0.01mm | £346.00 |
| |
| 543-725B | Flat | 0 - 25.4 | 0.01 mm | £396.00 |
| |
| 543-720B | Flat | 0 - 25.4 | 0.0005 mm/0.001 mm/0.01mm | £493.00 |
| |
| 543-730B | Flat | 0 - 50.8 | 0.0005 mm/0.001 mm/0.01mm | £540.00 |
|
Prices in the above table do not include calibration.

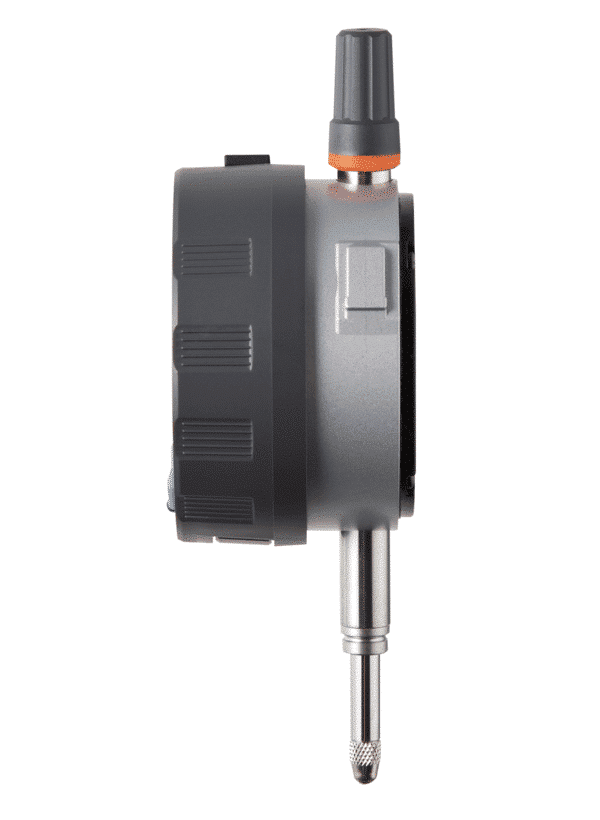

This is a multifunction standard indicator that is reliable and easy to use.

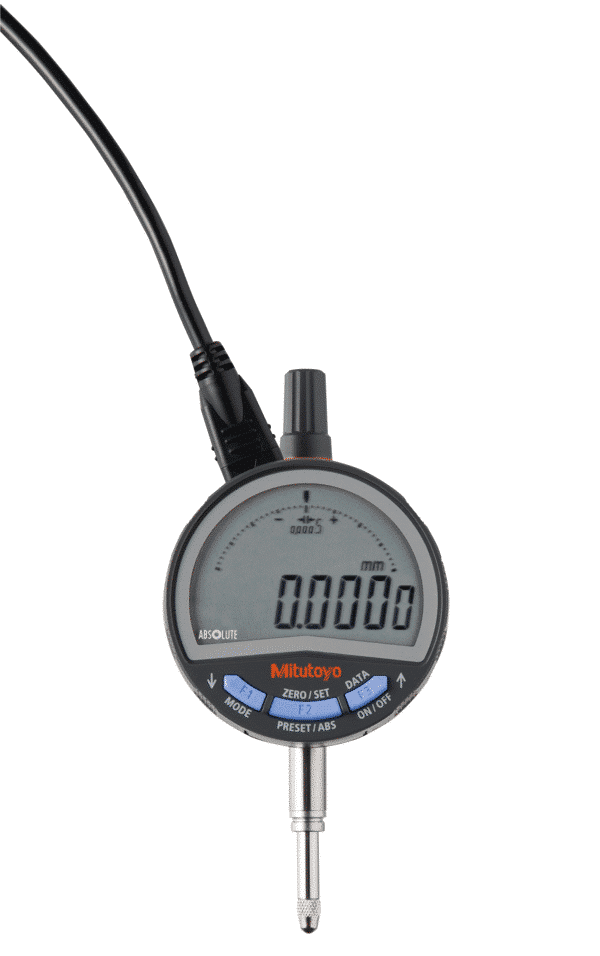

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display
Model with 0,5 µm digital step is available
Measurements such as simple calculation and peak detection are possible
Equipped with a calibration schedule warning function
GO/±NG judgement is performed by setting the upper and lower tolerances.

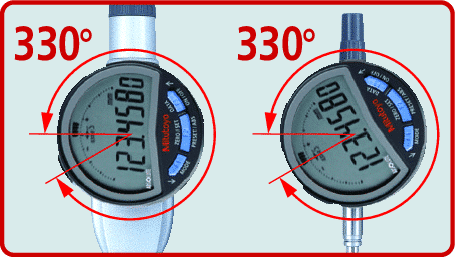

Display 330° rotatable.
A function lock protects the display against unauthorised use.
| Weight | 165 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Backplate | Flat, Lug |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| No. Lug back plate | 543-700, 543-710 |
| Digital step (mm) | |
| Digital step switchable | No, Yes |
| H MPE (Hysteresis) (mm) | 0.002 mm, 0.02 mm |
| R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Digimatic data output | |
| Digital/Analog | |
| Alarm | Low voltage, setting errors, sensor error, display overflow a.s.o. |
| Battery life | Approx. 2700 hours (continuous use) |
| Display | |
| Contact point | |
| Power supply | 1 battery CR2032 |
| Inch/Metric switchable | No |
