£750.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 543-857E | 0 - 50.8 |
|
Prices in the above table do not include calibration.
This is a superior multifunction indicator. The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:
Bidirectional Digimatic S1 interface

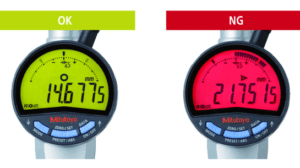

Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500scan/s
External power supply via AC-Adapter
High accuracy and 0,5 µm digital step
| Weight | 330 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| Digital step (mm) | |
| H MPE (Hysteresis) (mm) | 0.002 mm |
| R MPE (Repeatability) (mm) | 0.002 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Alarm | Setting errors, sensor error, display overflow a.s.o. |
| Auto Power OFF setting | Yes |
| Display | |
| Contact point | |
| Power supply | AC adapter 5,9V, 2A |
| Inch/Metric switchable | No |
