From £241.00
Calibration options available
SKU | Range (inch) | Range (mm) | Graduation (inch) | Graduation (mm) | Price | ||
---|---|---|---|---|---|---|---|
543-576 | 0 - 0.5 | 0 - 12.7 | 0.00005/0.0005 | 0.001/0.01 | £337.00 |
| |
543-571 | 0 - 0.5 | 0 - 12.7 | 0.0005 | 0.01 | £241.00 |
|
Prices in the above table do not include calibration.

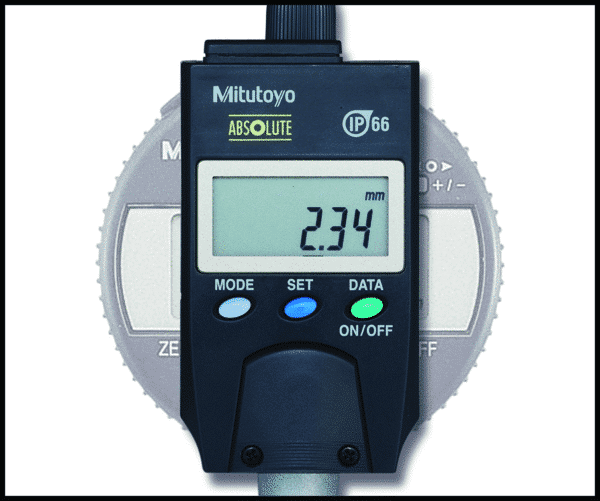

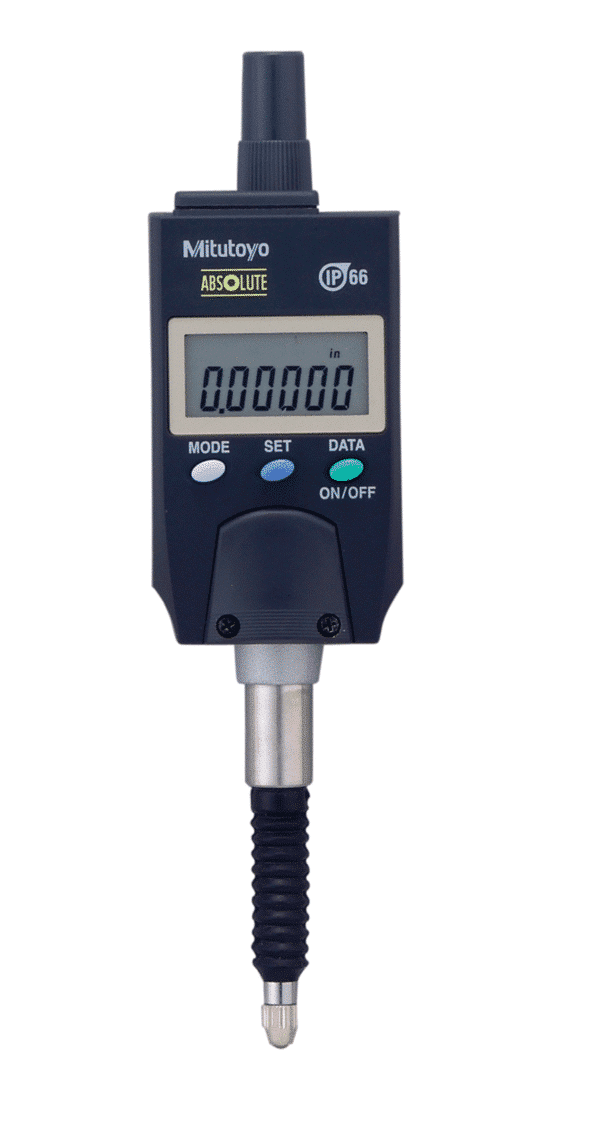

This is a slim back-plunger model that is highly resilient and robust. The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits: It slim body design is ideal for multi-point measurements. The ABSOLUTE sensor means you donโt have to carry out origin setting every time you power it on, saving you time and hassle. It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid. Switchable display orientation gives you more mounting options. You can perform GO/ยฑNG judgement by setting the upper and lower tolerances.
Weight | 140 g |
---|---|
Family | |
Unit | |
Calibration Type | |
Indicator Type | Plunger Type |
Range (inch) | |
Range (mm) | |
Graduation (inch) | |
Graduation (mm) | |
Standard | |
Digital step (mm) | |
Digital step (inch) | |
H MPE (Hysteresis) (mm) | 0.002 mm, 0.02 mm |
H MPE (Hysteresis) (inch) | 0.0001", 0.001" |
R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
R MPE (Repeatability) (inch) | 0.0001", 0.0005" |
Measuring force | |
Protection | |
Scale | Electrostatic capacitance type absolute linear encoder |
Stem ร (mm) | |
Digital/Analog | |
Alarm | Low voltage, counting value composition error, overflow error, tolerance limit setting error |
Battery life | approx. 7000 hours |
Display | |
Contact point | |
Power supply | 1 battery SR44 |
Inch/Metric switchable | Yes |
Resolution | 0.0005 inch / 0.01 mm |
