£189.00
Please choose options to view available calibrations and pricing
| SKU | Unit | Range (inch) | Range (mm) | Standard | Price | ||
|---|---|---|---|---|---|---|---|
| 575-122 | Inch/Metric | 0 - 1 | 0 - 25.4 | EN ISO |
| ||
| 575-123 | Inch/Metric | 0 - 1 | 0 - 25.4 | ASME/ANSI/AGD |
|
Prices in the above table do not include calibration.

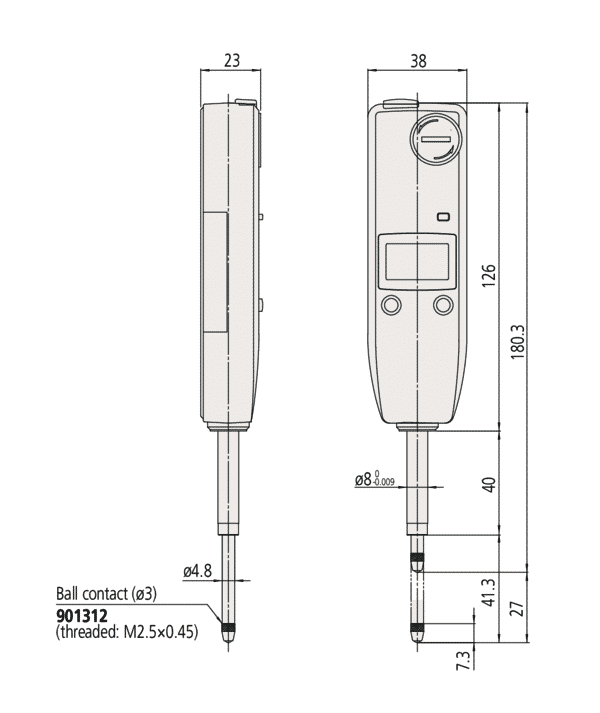

This is a slim type of digital indicator with a 25 mm range. The ABSOLUTE Digimatic Indicator ID-U offers you the following benefits: The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle. Its compact design makes it ideal for installing into measuring fixtures. Exceptional battery life.
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
| Family | |
|---|---|
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Range (inch) | |
| Range (mm) | |
| Graduation (inch) | |
| Graduation (mm) | |
| Standard | |
| Digital step (mm) | |
| Digital step (inch) | |
| H MPE (Hysteresis) (mm) | 0.02 mm |
| H MPE (Hysteresis) (inch) | 0.001" |
| R MPE (Repeatability) (mm) | 0.01 mm |
| R MPE (Repeatability) (inch) | 0.0005" |
| Measuring force | |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Digital/Analog | |
| Alarm | Low voltage, sensor error, ABS data composition error |
| Battery life | Approx. 20000 hours |
| Display | |
| Contact point | Carbide ball, thread: M2.5×0.45, Carbide ball, thread: No.4-48UNF |
| Power supply | 1 battery SR44 |
| Inch/Metric switchable | Yes |
