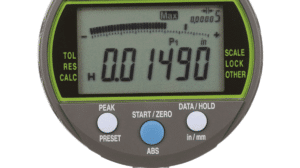

Mitutoyo Digital Indicator Peak Hold

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (inch)Range (mm)Price
543-3020 - 0.50 - 12.7

Add to Basket

Prices in the above table do not include calibration.

Description

This indicator is the MAX/MIN/RANGE value holding function model It offers the following benefits: The MAX/MIN/RANGE (run-out value) can be measured A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup via a setup menu Analogue bar graph in the display (12 different scales switchable)   GO/±NG tolerance judgement function This indicator enables the use of a calculation function for the measured value Ax Coefficient A is freely definable and x = displacement of the plunger A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Weight 170 g
Family

Unit

Calibration Type

Indicator Type

Plunger Type

Backplate

Lug

Range (inch)

Range (mm)

Graduation (inch)

Graduation (mm)

Standard

Digital step (mm)

Digital step (inch)

H MPE (Hysteresis) (mm)

0.002 mm

H MPE (Hysteresis) (inch)

0.0001"

R MPE (Repeatability) (mm)

0.002 mm

R MPE (Repeatability) (inch)

0.0001"

Measuring force

Protection

Scale

Electrostatic capacitance type absolute linear encoder

Stem Ø (mm)

PRESET

Yes

Digital/Analog

Alarm

Low voltage, ABS composition error, overflow error, setting error

Battery life

Standard mode: approx. 1 year fast mode: approx. 4.5 month

Display

Contact point

Power supply

1 battery CR2032

Inch/Metric switchable

Yes
