£444.00
Calibration options available
| SKU | Unit | Backplate | Range (mm) | Standard | Price | ||
|---|---|---|---|---|---|---|---|
| 543-300B-10 | Metric | Flat | 0 - 12.7 | EN ISO |
| ||
| 543-300-10 | Metric | Lug | 0 - 12.7 | EN ISO |
|
Prices in the above table do not include calibration.

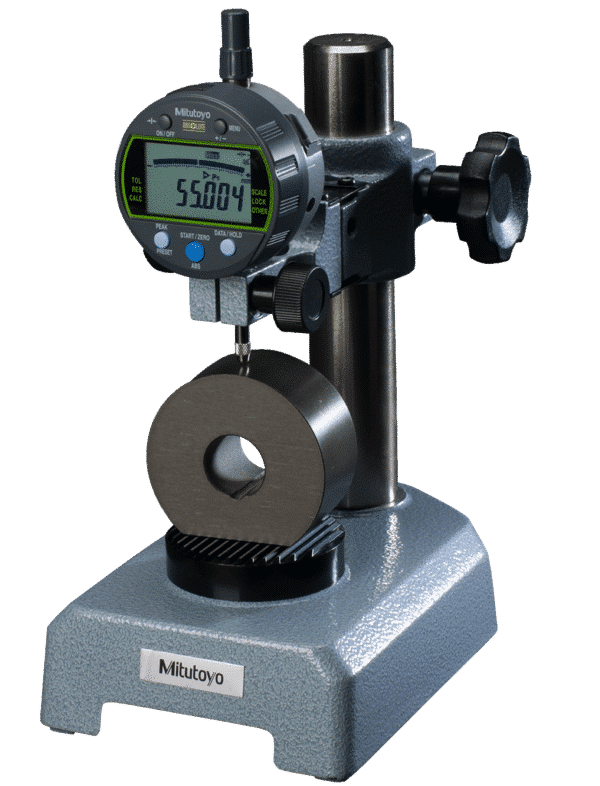

This indicator is the MAX/MIN/RANGE value holding function model It offers the following benefits: The MAX/MIN/RANGE (run-out value) can be measured A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably Easy indicator setup via a setup menu Analogue bar graph in the display (12 different scales switchable)  GO/±NG tolerance judgement function This indicator enables the use of a calculation function for the measured value Ax Coefficient A is freely definable and x = displacement of the plunger A USB interface box can be used to set up the indicator from PC via dedicated software
| Weight | 170 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Backplate | Flat, Lug |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| No. Lug back plate | 543-300-10 |
| Digital step (mm) | |
| H MPE (Hysteresis) (mm) | 0.002 mm |
| R MPE (Repeatability) (mm) | 0.002 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| PRESET | Yes |
| Digital/Analog | |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Battery life | Standard mode: approx. 1 year fast mode: approx. 4.5 month |
| Display | |
| Contact point | |
| Power supply | 1 battery CR2032 |
| Inch/Metric switchable | No |
