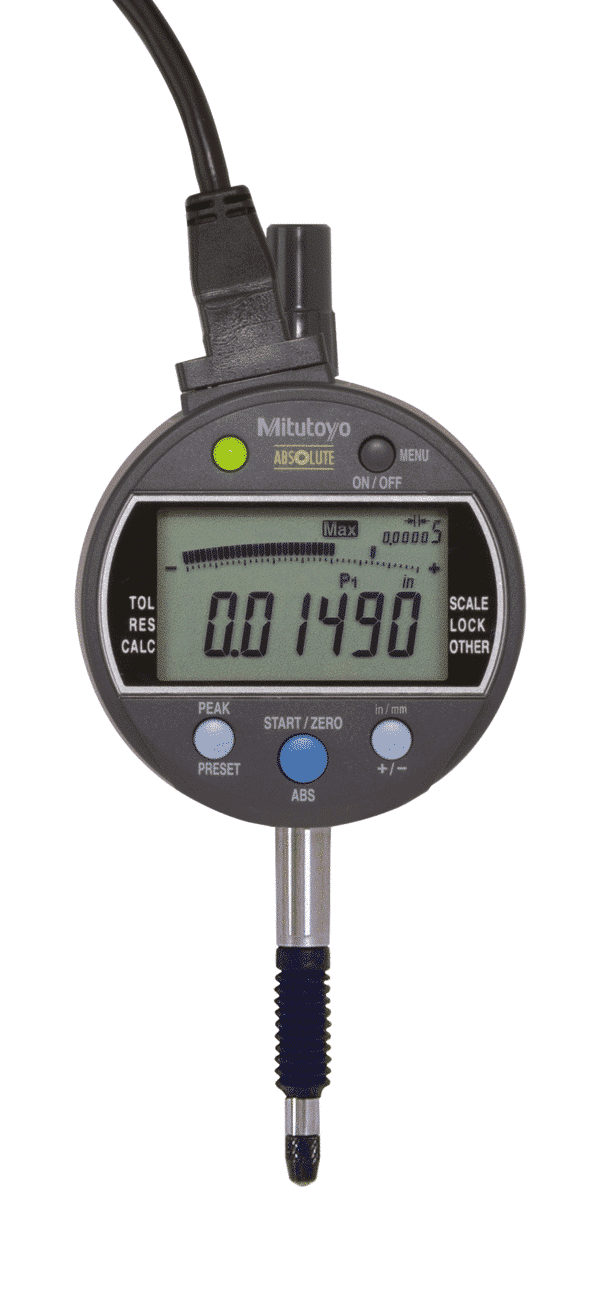

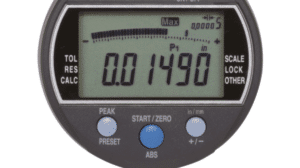

Mitutoyo Digital Indicator Signal ID-C (Inch/Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKUUnitBackplateRange (inch)Range (mm)StandardPrice
543-351BInch/MetricFlat0 - 0.50 - 12.7EN ISO£618.00

Add to Basket

543-352BInch/MetricFlat0 - 0.50 - 12.7ASME/ANSI/AGD£618.00

Add to Basket

543-352-10Inch/MetricLug0 - 0.50 - 12.7ASME/ANSI/AGD£636.00

Add to Basket

Prices in the above table do not include calibration.

Description

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output. Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54) Measures MAX/MIN/RANGE (run-out value). Saves three different Preset and Tolerance settings. Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE) Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger Analogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgment function

Specification

Weight 285 g
Family

Unit

Calibration Type

Indicator Type

Plunger Type

Backplate

Flat, Lug

Range (inch)

Range (mm)

Graduation (inch)

Graduation (mm)

Standard

,

No. Lug back plate

543-283, 543-351

Digital step (mm)

Digital step (inch)

H MPE (Hysteresis) (mm)

0.002 mm

H MPE (Hysteresis) (inch)

0.0001"

R MPE (Repeatability) (mm)

0.002 mm

R MPE (Repeatability) (inch)

0.0001"

Measuring force

Protection

Scale

Electrostatic capacitance type absolute linear encoder

Stem Ø (mm)

,

Digimatic data output

PRESET

Yes

Digital/Analog

Alarm

Low voltage, ABS composition error, overflow error, setting error

Display

Contact point

,

Power supply

1 battery CR2032, 5 – 24 V DC / 100mA (max)

Inch/Metric switchable

Yes
