£636.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Price | ||
|---|---|---|---|---|
| 543-350B-10 | 0 - 12.7 |
|
Prices in the above table do not include calibration.

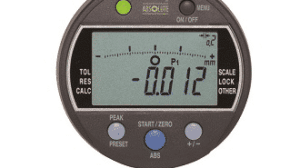

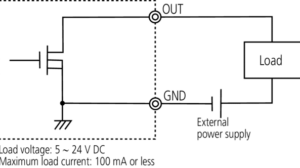

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output. Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54) Measures MAX/MIN/RANGE (run-out value). Saves three different Preset and Tolerance settings. Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE) Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger Analogue bar graph in the display (12 different scales switchable) GO/±NG tolerance judgment function
| Weight | 285 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Indicator Type | Plunger Type |
| Backplate | Flat |
| Range (mm) | |
| Graduation (mm) | |
| Standard | |
| No. Lug back plate | 543-350-10 |
| Digital step (mm) | |
| H MPE (Hysteresis) (mm) | 0.002 mm |
| R MPE (Repeatability) (mm) | 0.002 mm |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Stem Ø (mm) | |
| Digimatic data output | |
| PRESET | Yes |
| Digital/Analog | |
| Alarm | Low voltage, ABS composition error, overflow error, setting error |
| Display | |
| Contact point | |
| Power supply | 1 battery CR2032 |
| Inch/Metric switchable | No |
