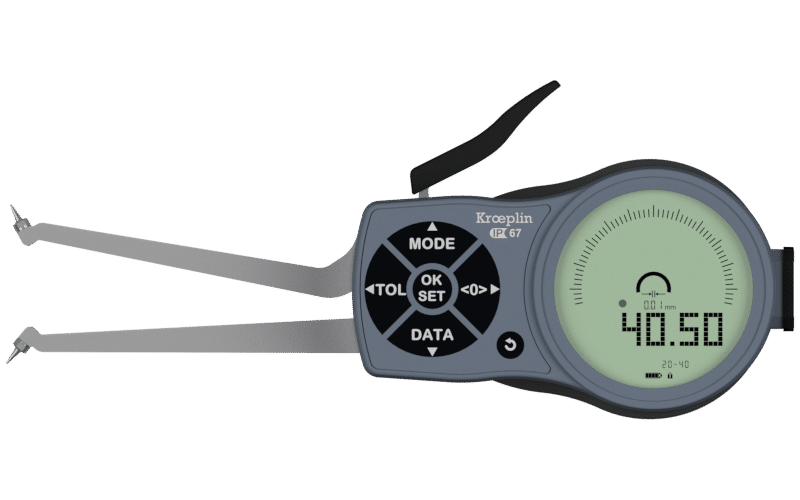

Digital internal measuring gauge for blind holes

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Price
L2G2020 - 40

Add to Basket

L2G3030 - 50

Add to Basket

L2G4040 - 60

Add to Basket

L2G5050 - 70

Add to Basket

Prices in the above table do not include calibration.

Description

Digital internal measuring gauge

Internal measurement for blind holes

Specification

Weight 270 g
Range (mm)

, , ,

Unit

Measuring span (mm)

Range of indication Azb (mm)

19.5 – 40.5, 29.5 – 50.5, 39.5 – 60.5, 49.5 – 70.5

Numerical interval Zw (mm)

0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05mm

Max. Permissible Error G (mm)

0.03

Repeatability limit r (mm)

0.01

Measuring force F min. (N)

1.1

Measuring force F max. (N)

1.6

Measuring contact fixed Hf (mm)

5

Measuring depth max. L (mm)

85

Reference temperature

20 °C

Reference temperature range

10 – 30 °C

Storage temperature

-10 – 50 °C

Protection

Power supply

2x LR03 (AAA)
