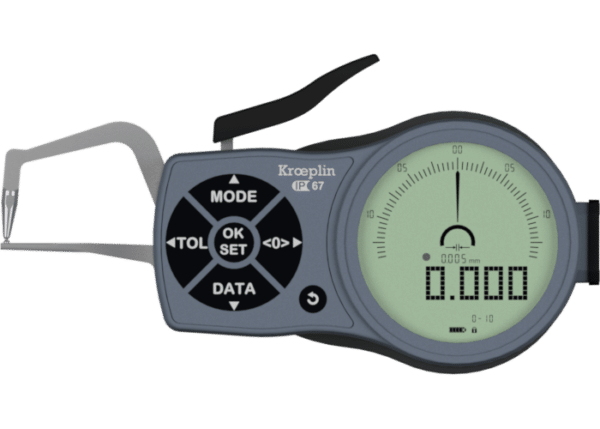

Digital internal measuring gauge for tube wall thickness

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Measuring contact movable typePrice
K1R100 - 10HM-Ball Ø 1,5 mm£342.60

Add to Basket

K1R10S0 - 10Chisel R 0,4 mm£342.60

Add to Basket

K2R200 - 20HM-Ball Ø 1,5 mm£342.60

Add to Basket

K2R20S0 - 20Chisel R 0,4 mm£342.60

Add to Basket

K4R500 - 50HM-Ball Ø 3mm£473.80

Add to Basket

K4R50S0 - 50Chisel R 0,75 mm£473.80

Add to Basket

K8R1000 - 100HM-Ball Ø 5 mm£775.90

Add to Basket

Prices in the above table do not include calibration.

Description

Digital internal measuring gauge

Measurement of tube wall thickness

Specification

Weight 255 g
Range (mm)

, , ,

Unit

Measuring span (mm)

, , ,

Range of indication Azb (mm)

0 – 10.5, 0 – 101, 0 – 20.5, 0 – 50.5

Numerical interval Zw (mm)

0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05mm

Max. Permissible Error G (mm)

0.015, 0.03, 0.05, 0.15

Repeatability limit r (mm)

0.005, 0.01, 0.03, 0.1

Measuring force F min. (N)

0.8, 1.1

Measuring force F max. (N)

1.2, 1.6, 1.7, 8

Measuring contact fixed Hf (mm)

0.9, 15, 2.5, 4.3

Measuring depth max. L (mm)

169, 35, 382, 80

Reference temperature

20 °C

Reference temperature range

10 – 30 °C

Storage temperature

-10 – 50 °C

Protection

Power supply

2x LR03 (AAA)

Measuring contact movable type

Chisel R 0,4 mm, Chisel R 0,75 mm, HM-Ball Ø 1,5 mm, HM-Ball Ø 3mm, HM-Ball Ø 5 mm
