SKURange (mm)Data outputPrice
293-230-300 - 25Yes£293.00

Add to Basket

293-231-3025 - 50Yes£312.00

Add to Basket

293-240-300 - 25No£222.00

Add to Basket

Prices in the above table do not include calibration.

Description

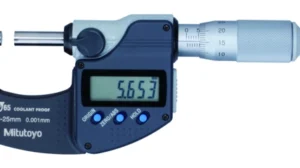

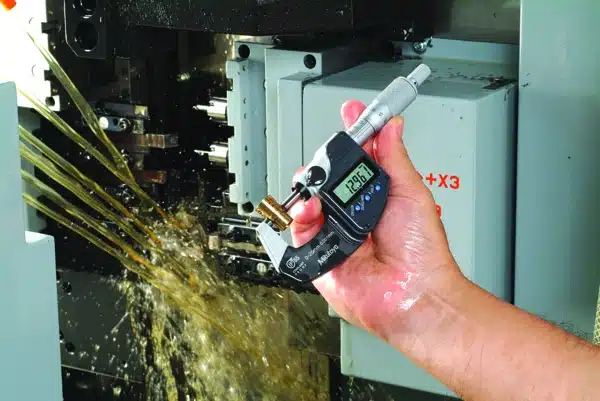

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Specification

Weight 270 g
Range (mm)

,

Accessories

Including box, spanner, SR44 battery, certificate of inspection, Including box, spanner, SR44 battery, setting standard, certificate of inspection

Data output

,

Digital/Analog

Unit

Digital step

0.001 mm

"Max. Permissible Error J MPE"

Flatness

Parallelism

1 µm

Display

Measuring face

Carbide-tipped, micro-lap finish

Measuring spindle

With spindle lock, ø6.35 mm, spindle pitch 0.5 mm

Scale

Thimble and sleeve satin chrome finish, ø18 mm

Measuring force

Power supply

1 battery SR-44

Battery life

Approx. 2.4 years for models ≤100 mm
1.2 years for >100 mm

Origin (ABS-Zero)

Yes

Auto Power OFF setting

Yes

Low voltage alarm

Yes

Function lock

Hold

PRESET

Yes

Protection

Mass

,
