From £222.00
Calibration options available
| SKU | Range (inch) | Ratchet type | Data output | Price | ||
|---|---|---|---|---|---|---|
| 293-340-30 | 0 - 1 | Ratchet stop | No | £222.00 | ||
| 293-344-30 | 0 - 1 | Ratchet thimble | No | £233.00 | ||
| 293-330-30 | 0 - 1 | Ratchet stop | Yes | £293.00 | ||
| 293-345-30 | 1 - 2 | Ratchet thimble | No | £277.00 | ||
| 293-341-30 | 1 - 2 | Ratchet stop | No | £277.00 |
Prices in the above table do not include calibration.

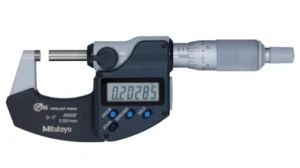

A Mitutoyo waterproof digital micrometer suitable for use in the presence of coolant or cutting oil. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement. Digimatic data output.
| Weight | 270 g |
|---|---|
| Range (inch) | |
| Accessories | Including box, spanner, SR44 battery, certificate of inspection, Including box, spanner, SR44 battery, setting standard, certificate of inspection |
| Ratchet type | |
| Data output | |
| Digital/Analog | |
| Unit | |
| Digital step | 0.00005"/0.001 mm |
| "Max. Permissible Error J MPE" | |
| Flatness | |
| Parallelism | 0.000012", 0.00004" |
| Display | |
| Measuring face | Carbide-tipped, micro-lap finish |
| Measuring spindle | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm |
| Scale | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring force | |
| Power supply | 1 battery SR-44 |
| Battery life | Approx. 2.4 years for models ≤4" |
| Origin (ABS-Zero) | Yes |
| Auto Power OFF setting | Yes |
| Low voltage alarm | Yes |
| Function lock | |
| Hold | |
| PRESET | Yes |
| Protection | |
| Mass |
