SKURange (inch)Data outputPrice
293-185-300 - 1No Original price was: £235.00.Current price is: £170.00.

Add to Basket

293-180-300 - 1Yes Original price was: £351.00.Current price is: £250.00.

Add to Basket

293-186-301 - 2No Original price was: £296.00.Current price is: £210.00.

Add to Basket

293-181-301 - 2Yes Original price was: £374.00.Current price is: £270.00.

Add to Basket

293-187-302 - 3No Original price was: £345.00.Current price is: £250.00.

Add to Basket

293-182-302 - 3Yes Original price was: £421.00.Current price is: £305.00.

Add to Basket

293-188-303 - 4No Original price was: £376.00.Current price is: £270.00.

Add to Basket

293-183-303 - 4Yes£467.00

Add to Basket

Prices in the above table do not include calibration.

Description

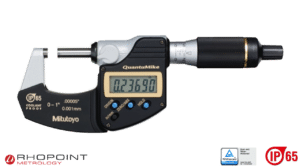

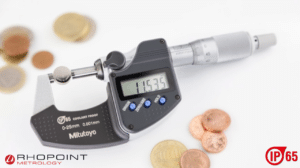

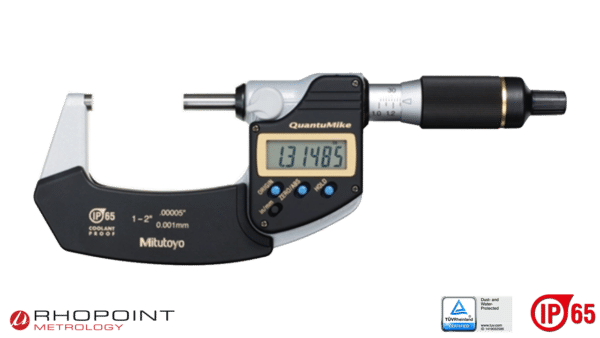

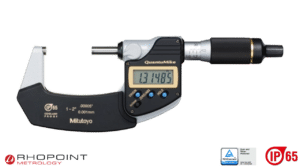

A rapid action, waterproof Mitutoyo digital micrometer that enables measurements to be made several times faster than a standard micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet thimble guarantees repeatable measurement. Digimatic data output.

Specification

Weight 265 g
Range (inch)

, , ,

Accessories

Including box, spanner, SR44 battery, certificate of inspection, Including box, spanner, SR44 battery, setting standard, certificate of inspection

Data output

,

Digital/Analog

Unit

Digital step

0.00005"/0.001 mm

"Max. Permissible Error J MPE"

Flatness

Parallelism

0.00004"

Display

Measuring face

Carbide-tipped, micro-lap finish

Measuring spindle

With spindle lock, ø6.35mm, spindle pitch 2 mm

Scale

Thimble and sleeve satin chrome finish, ø19.3 mm

Measuring force

Power supply

1 battery SR-44

Battery life

Approx. 2.4 years

Origin (ABS-Zero)

Yes

Auto Power OFF setting

Yes

Low voltage alarm

Yes

Function lock

Hold

Protection

Mass

,
