SKUBackplateRange (inch)Range (mm)Price
543-507BFlat0 - 0.50 - 12.7

Add to Basket

543-507Lug0 - 0.50 - 12.7

Add to Basket

Prices in the above table do not include calibration.

Description

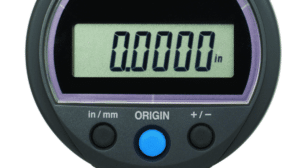

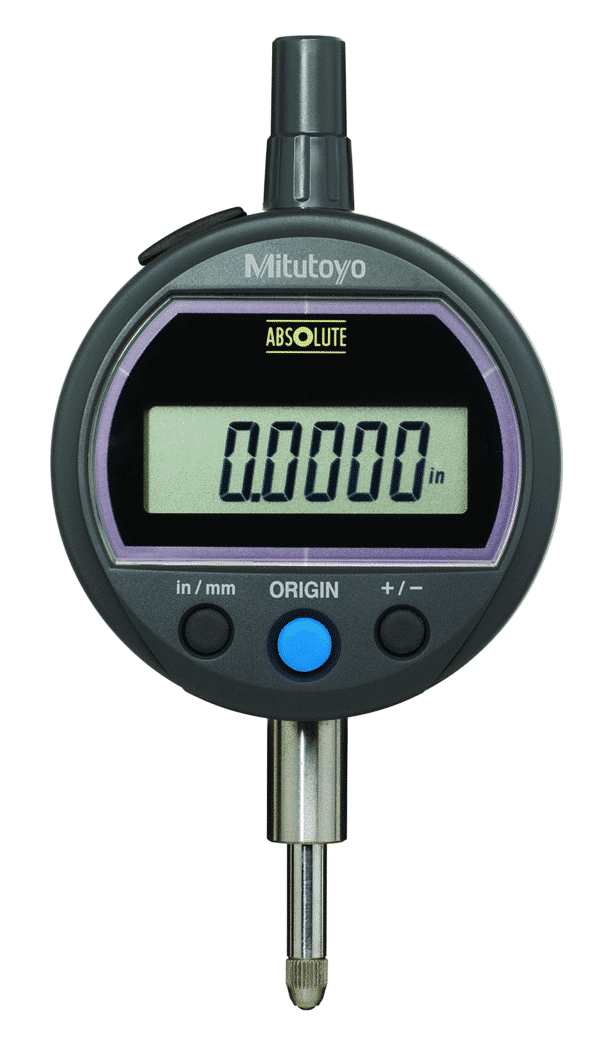

This solar-powered, standard model is environmentally friendly and very easy to use. The ABSOLUTE Digimatic Solar Indicator ID-SS offers you the following benefits: The ABSOLUTE sensor means you donโ€˜t have to carry out origin setting every time you power it on, saving you time and hassle. Thereโ€˜s no battery to change. The solar cell is operates from just 40 Lux. Super-capacitor charge storage enables you to work in low-level lighting conditions of less than 40 Lux. You can access all functions by using the large, user-friendly buttons on the front of the indicator. Large character height of 9 mm provides good readability.

This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.

Specification

Weight 150 g
Family

Unit

Calibration Type

Indicator Type

Plunger Type

Backplate

Flat, Lug

Range (inch)

Range (mm)

Graduation (inch)

Graduation (mm)

Standard

No. Lug back plate

543-502, 543-507

Digital step (mm)

Digital step (inch)

H MPE (Hysteresis) (mm)

0.002 mm, 0.02 mm

H MPE (Hysteresis) (inch)

0.0001", 0.001"

R MPE (Repeatability) (mm)

0.002 mm, 0.01 mm

R MPE (Repeatability) (inch)

0.0001", 0.0005"

Protection

Scale

Electrostatic capacitance type absolute linear encoder

Stem ร˜ (mm)

Digital/Analog

Alarm

Low voltage, sensor error, ABS data composition error

Display

Contact point

Power supply

Solar cell usable from 40 Lux illumination

Inch/Metric switchable

Yes
