£460.00
Please choose options to view available calibrations and pricing

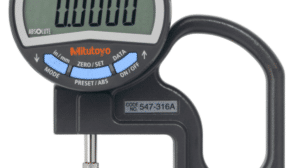

This ABSOLUTE Digimatic Thickness Gauge enables you to measure film, paper, etc., with flat contact points.
| Weight | 260 g |
|---|---|
| Family | |
| Unit | |
| Calibration Type | |
| Type | Anvil D=3.5 mm, contact point D=3 mm, Blade steel contact point, Ceramic disc contact points, Ceramic disc contact points and large jaw capacity, D= 6.3 mm carbide tipped |
| Indicator Type | Thickness Gauge |
| Range (inch) | |
| Graduation (inch) | |
| Graduation (mm) | |
| Feature | With indicator ID-C No. 543-712BS, With Indicator ID-C No.543-701BS, With indicator ID-C No.543-712BS( ASME/ANSI Type), With indicator ID-C No.543-712BS(ASME/ANSI Type) |
| Accuracy (mm/µm) | |
| Digital step (mm) | |
| Digital step (inch) | |
| Digital step switchable | No |
| Max. measuring depth | 120 mm, 30 mm, 20.5 mm, 21 mm |
| R MPE (Repeatability) (mm) | 0.002 mm, 0.01 mm |
| R MPE (Repeatability) (inch) | 0.0001", 0.0005" |
| Protection | |
| Scale | Electrostatic capacitance type absolute linear encoder |
| Accuracy (inch) | |
| Indicator No. | |
| Digital/Analog | |
| Alarm | Low voltage, setting errors, sensor error, display overflow a.s.o. |
| Display | |
| Power supply | 1 battery CR2032 (3V) |
| Parallelism (mm) | 0.003 mm, 0.01 mm |
| Parallelism (inch) | 0.0005", 0.0001" |
