Mitutoyo External Digital Caliper Gauge (Metric)

Any questions, contact us?

How to contact us

UKAS Calibration Lab

Why use Rhopoint

Frequently Asked Questions

FAQs

What can we calibrate?

Calibration disciplines

SKURange (mm)Measuring ContactAccuracy (mm)HfPrice
209-9430 - 10Carbide ball Ø 1.5 mm0.0159£691.00

Add to Basket

209-9300 - 10Carbide ball Ø 1.5 mm0.01518.6£751.00

Add to Basket

209-9310 - 10Disk measuring faces Ø 6 mm0.0214.8£751.00

Add to Basket

209-9320 - 20Carbide ball Ø 1.5 mm0.0324.6£751.00

Add to Basket

209-9330 - 20Carbide ball Ø 1.5 mm0.032.5£751.00

Add to Basket

209-9510 - 30Carbide ball Ø 3 mm0.0430£751.00

Add to Basket

209-9520 - 30Carbide ball Ø 3 mm0.044£751.00

Add to Basket

209-9530 - 30Disk measuring faces Ø 50 mm0.0624£751.00

Add to Basket

209-9570 - 50Bevel radius 0.75mm0.0630£1,020.00

Add to Basket

209-9580 - 50Carbide ball Ø 3 mm & Bevel radius 0.75mm0.064.3£1,020.00

Add to Basket

209-9540 - 50Carbide ball Ø 3 mm0.0530£1,020.00

Add to Basket

209-9550 - 50Carbide ball Ø 3 mm0.054.3£1,020.00

Add to Basket

209-9560 - 50Disk measuring faces Ø 50 mm0.0624£1,020.00

Add to Basket

Prices in the above table do not include calibration.

Description

Digital Caliper Gauge enables measurements in hard-to-reach places Excellent resistance against water and dust IP67 level

Specification

Weight 255 g
Family

Calibration Type

Range (mm)

, , ,

Measuring Contact

, , , , ,

Accuracy (mm)

, , , , ,

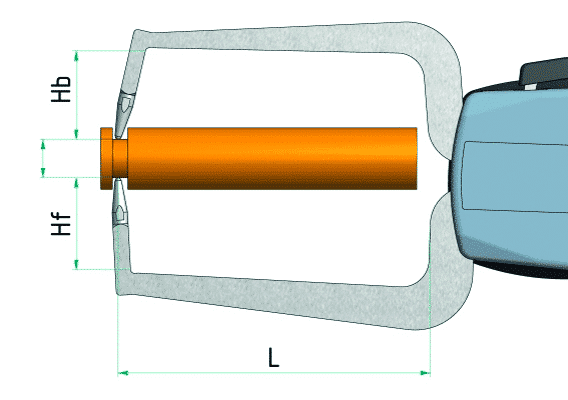

Hf

14.8, 18.6, 2.5, 24, 24.6, 30, 4, 4.3, 9

Hb

19.1, 21.7, 24.7, 30, 36

Type

, , , , ,

Indicator Type

Dial Calliper

Graduation (mm)

, ,

Measuring force

, , ,

Protection

Power supply

2 batteries LR3 (AAA)
