From £703.00
Calibration options available
SKU | Range (inch) | Price | ||
---|---|---|---|---|
209-350 | 0.1 - 0.5 | £703.00 |
| |
209-351 | 0.2 - 0.6 | £703.00 |
| |
209-352 | 0.4 - 1.2 | £703.00 |
| |
209-354 | 0.8 - 1.6 | £703.00 |
| |
209-355 | 1.2 - 2 | £703.00 |
| |
209-356 | 1.6 - 2.4 | £703.00 |
| |
209-357 | 2 - 2.8 | £709.00 |
| |
209-361 | 2 - 4 | £1,080.00 |
| |
209-358 | 2.4 - 3.2 | £703.00 |
| |
209-359 | 2.8 - 3.6 | £709.00 |
| |
209-360 | 3.2 - 4 | £703.00 |
| |
209-362 | 3.6 - 5.6 | £1,080.00 |
|
Prices in the above table do not include calibration.

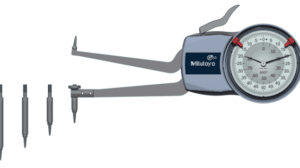

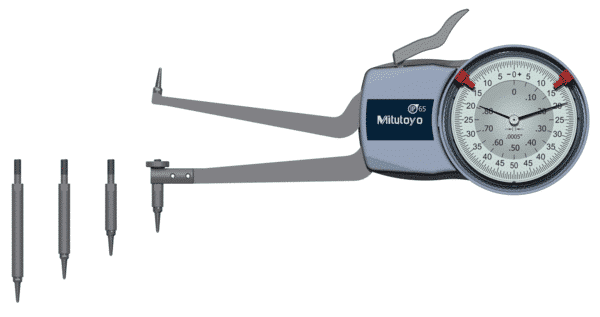

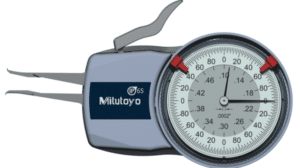

This analog Internal Dial Caliper Gauge offers you the following benefits: Excellent resistance against water and dust (IP65 protection level) Optimized measuring force Ergonomically designed to lie securely in your hand when measuring
Weight | 155 g |
---|---|
Family | |
Unit | |
Calibration Type | |
Indicator Type | Dial Calliper |
Range (inch) | 0.1 – 0.5, 0.2 – 0.6, 0.4 – 1.2, 0.8 – 1.6, 1.2 – 2, 1.6 – 2.4, 2 – 2.8, 2 – 4, 2.4 – 3.2, 2.8 – 3.6, 3.2 – 4, 3.6 – 5.6 |
Graduation (inch) | |
Measuring Contact | Carbide ball ø0.024", Carbide ball ø0.039", Carbide ball ø0.04", Carbide bevel (radius 4") |
Accuracy (inch) |
