£703.00 – £1,140.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Measuring Contact | Price | ||
|---|---|---|---|---|---|
| 209-300 | 2.5 - 12.5 | Carbide Bevel (R: 0.1 mm) | £703.00 |
| |
| 209-301 | 5 - 15 | Carbide ball Ø 0.6 mm | £703.00 |
| |
| 209-302 | 10 - 30 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-901 | 15 - 65 | Carbide ball Ø 1.5 mm | £814.00 |
| |
| 209-303 | 20 - 40 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-304 | 30 - 50 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-305 | 40 - 60 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-902 | 40 - 90 | Carbide ball Ø 2 mm | £814.00 |
| |
| 209-306 | 50 - 70 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-310 | 50 - 100 | Interchangeable, Carbide ball Ø 1 mm | £1,080.00 |
| |
| 209-307 | 60 - 80 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-308 | 70 - 90 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-903 | 70 - 120 | Carbide ball Ø 2 mm | £916.00 |
| |
| 209-309 | 80 - 100 | Carbide ball Ø 1 mm | £703.00 |
| |
| 209-311 | 90 - 140 | Interchangeable, Carbide ball Ø 1 mm | £1,080.00 |
| |
| 209-312 | 130 - 180 | Interchangeable, Carbide ball Ø 1 mm | £1,140.00 |
|
Prices in the above table do not include calibration.

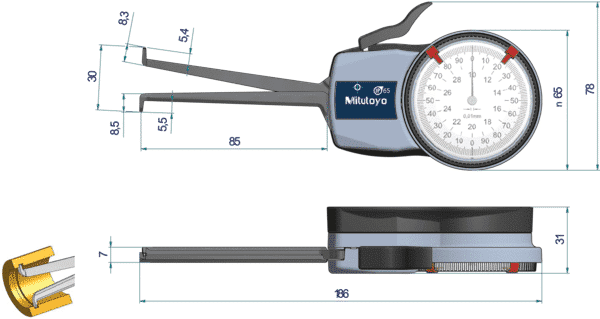

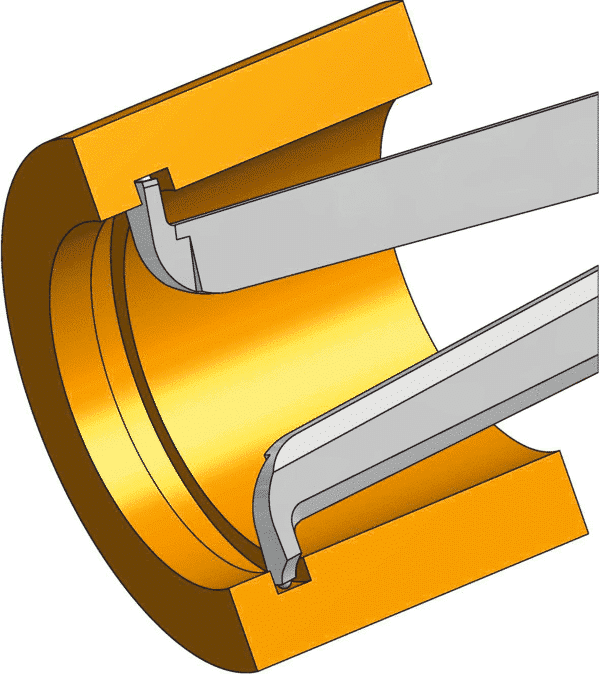

A Mitutoyo internal dial caliper gauge designed for use as a comparator, to be set up using a setting ring or micrometer. The caliper is spring loaded and makes point contact at constant measuring force.
| Weight | 180 g |
|---|---|
| Family | |
| Calibration Type | |
| Indicator Type | Dial Calliper |
| Range (mm) | 2.5 – 12.5, 5 – 15, 10 – 30, 15 – 65, 20 – 40, 30 – 50, 40 – 60, 40 – 90, 50 – 70, 50 – 100, 60 – 80, 70 – 90, 70 – 120, 80 – 100, 90 – 140, 130 – 180 |
| Graduation (mm) | |
| Accuracy (mm/µm) | |
| Measuring Contact | Carbide ball Ø 0.6 mm, Carbide ball Ø 1 mm, Carbide ball Ø 1.5 mm, Carbide ball Ø 2 mm, Carbide Bevel (R: 0.1 mm), Interchangeable, Carbide ball Ø 1 mm |
| Measuring force |
