£6,790.00
Please choose options to view available calibrations and pricing
| SKU | Range (mm) | Range (inch) | Price | ||
|---|---|---|---|---|---|
| 518-360-13 | 0 - 600 | 0 - 24 |
|
Prices in the above table do not include calibration.

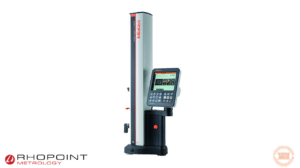

The Linear Heigth LH-600F/FG is a high-end 2D height-measuring instrument exhibiting the perfect combination of intuitive operation, multifunctionality and extraordinary accuracy, without Grip or Power Cord.
Measurement operations can be performed by using th hybrid controller box with a touch screen and integrated sheet keyboard
It is capable of measuring with a digital step of 0.1µm
Excellent accuracy of (1.1 + 0.6L/600) µm
Bidirectional Digimatic data output (Digimatic S1)
Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB -Stick
Pneumatic drive mechanism
Automatic running of pre-learned part programs
Excellent visualization of GO/±NG tolerance comparisons
Independent operation with rechargeable battery
LH-Communication Tool Software available online free of charge
| Weight | 26100 g |
|---|---|
| Unit | |
| Range (mm) | |
| Range (inch) | |
| Family | |
| Digital step | 0.0001/ 0.001/ 0.01/ 0.1 mm (selectable). 0.000001/ 0.00001/ 0.0001/ 0.001" (selectable) |
| Accuracy (mm) | |
| Calibration Code | |
| Calibration Type | |
| Perpendicularity | 5 µm (after compensation) |
| Straightness | 4 µm (mechanical) |
| Repeatability | (2σ) Plane : 0.4 µm (2σ) Bore : 0.9 µm |
| Air floating | Full-floating (for moving), semi floating (for scanning measurement) |
| Remarks | Without power grip |
| Mass | |
| Scale | Photoelectric INC encoder, STVC-20Z (8.1×10-6/°C) |
| Display | 8.4" SVGA touch screen (800×600 dot, LED, with back lightning) |
| Drive method | Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps)/ manual |
| Battery operation time | Approx. 4 hours |
| Slider stroke | 600 mm |
| Digital/Analog |
